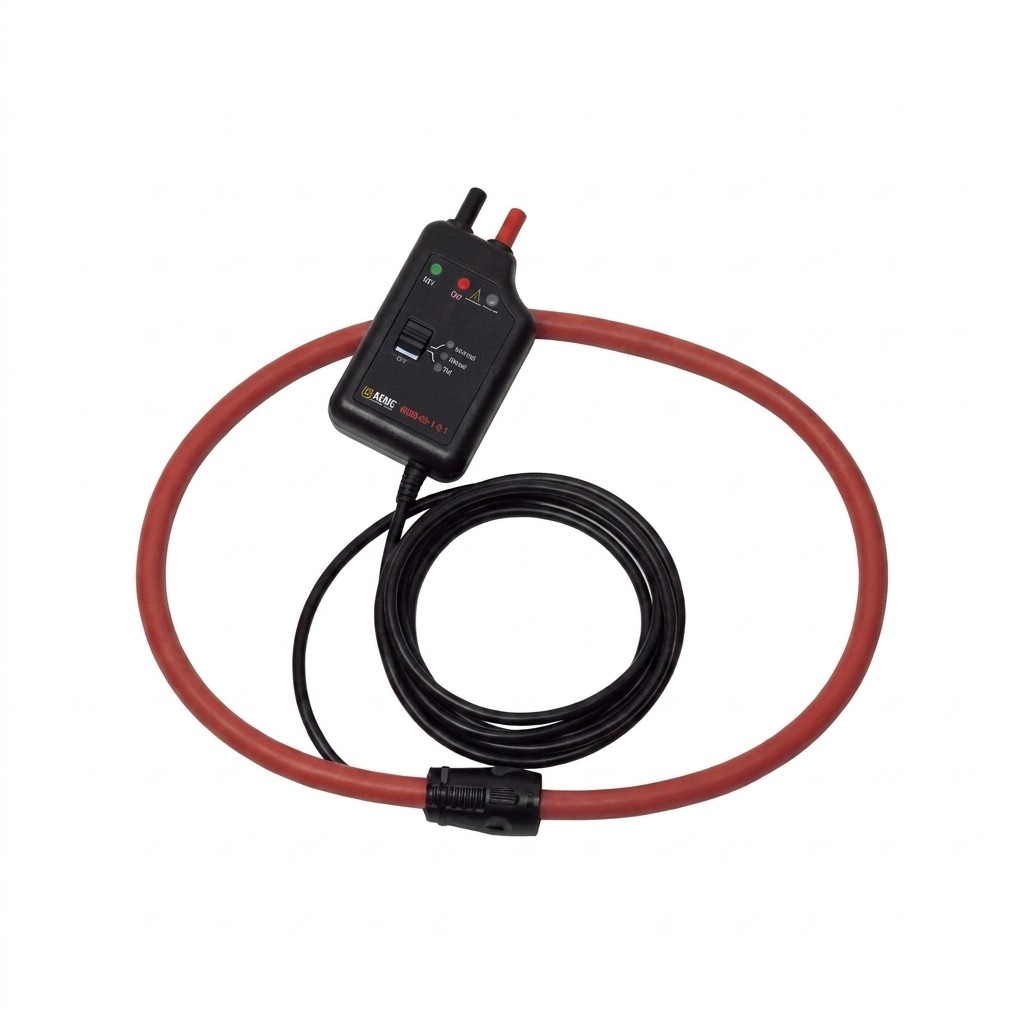

AEMC 6000-60-1-0.1 Flexible Current Transformer, 6000A, 0.1mV/A

The AEMC 6000-60-1-0.1 is a high-performance flexible current transformer designed for accurate measurement of AC currents in demanding industrial environments. With a measurement range of 5 to 6000A and an output signal of 0.1mV/A, this probe provides exceptional linearity and phase accuracy, making it ideal for power quality analysis, load monitoring, and energy management.

Key Features & Highlights

• Flexible Sensor: The AmpFlex® sensor can be shaped around conductors, allowing measurements in tight spaces where standard clamp-on probes cannot fit.
• Wide Measurement Range: Accurately measures from 5A to 6000A, suitable for a broad range of applications.
• High Accuracy: 1% of reading accuracy for TRMS measurements when used with a compatible TRMS instrument.
• Excellent Linearity: Ensures consistent performance across the entire measurement range.
• No Core Saturation: Overloads do not cause saturation or damage, ensuring long-term reliability.
• Waterproof Sensor: Designed to withstand harsh environments, including wet conditions.
• Shape Memory: The sensor can be pre-shaped for convenient and repeatable positioning.
• High Frequency Response: Suitable for measuring harmonics and other high-frequency components.
• Low Phase Shift: Ideal for power measurements where phase accuracy is critical.
• DC Insensitivity: Measures only the AC component, even when DC is present, preventing errors.

Applications

This current transformer is ideal for use in power quality audits, load profiling, energy management, and troubleshooting in industrial plants, commercial buildings, and utility applications. Its flexible design makes it particularly useful for retrofitting existing installations without disconnecting conductors.
