Overview

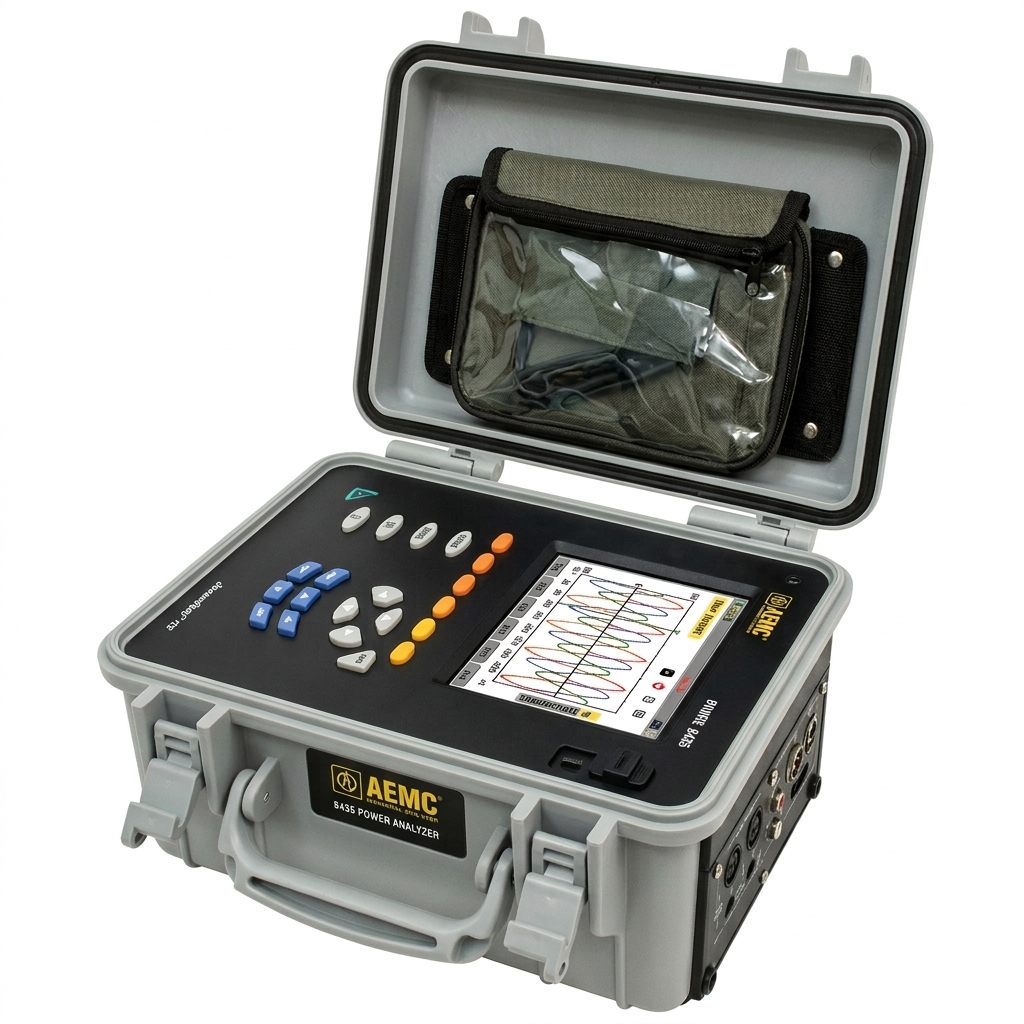

The AEMC 8435 Power Analyzer is a comprehensive instrument for electrical professionals requiring precise power quality analysis. With True RMS technology, it accurately measures voltage, current, and power in single-phase and polyphase systems (2-5 wire). It captures transients, records trends, and performs harmonic analysis up to the 50th harmonic, making it essential for troubleshooting and energy management.
Key Features & Highlights
- True RMS voltage measurement up to 1000 Vrms AC/DC
- True RMS current measurement up to 6500 Arms (sensor dependent)
- Direct measurement of neutral current and voltage
- Frequency measurement for 40-70 Hz systems
- Trend recording of up to 25 variables at 1-second intervals for one month
- Captures up to 210 transient events on all voltage and current inputs
- Harmonic analysis for voltage, current, and power up to the 50th harmonic
- Recording and time-stamping of disturbances (swells, sags, interruptions, threshold exceedances)
- 2GB SD card for trend recording, alarms, snapshots, transients, and inrush data
- Energy measurement (VAh, VARh, Wh)
- Transient recording with 65 µs/sample resolution
- Includes DataView® software for configuration, real-time display, and report generation
Applications
The AEMC 8435 is ideal for power quality audits, energy efficiency studies, and troubleshooting in industrial, commercial, and utility settings. It is suitable for verifying power quality compliance, analyzing harmonic distortion, and monitoring energy consumption in critical systems.
