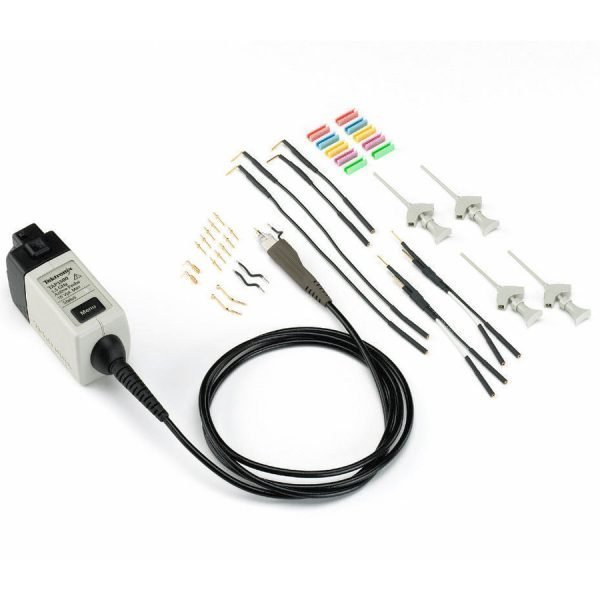

Tektronix P6243 Active Probes & Differential Probe

Designed for test and measurement applications, the Tektronix P6243 Active Probes & Differential Probe is a practical, professional instrument. Highlights: active Probe for SMDs, Single-Ended TekProbe, 1 GHz, 10X Product.

• Features and Specifications Tektronix P6243
• Active Probe for SMDs, Single-Ended TekProbe, 1 GHz, 10X Product
• Overview The Tektronix P6243 is an active probe designed for probing small surface-mount devices (SMDs)
• It features a 1 GHz bandwidth and a 10X attenuation ratio, making it ideal for high-speed signal measurements
• The P6243 also has a small form factor and a flexible probe tip, making it easy to use in tight spaces
• Features 1 GHz bandwidth 10X attenuation ratio Small form factor Flexible probe tip Ground lead included Specifications Bandwidth:
• 1 GHz Attenuation ratio:
• 10X Input impedance:
• 1 MΩ // 10 pF Output impedance:
• 50 Ω Rise time:
• 350 ps Maximum input voltage:
• 10 V Probe tip:
• Flexible, 0.5 mm diameter Probe length:
• 12 inches Weight:
• 2 ounces What’s in the Box Tektronix P6243
• Active Probe Ground lead User manual Benefits
• The Tektronix P6243 Active Probe is ideal for probing small surface-mount devices (SMDs)
• Its 1 GHz bandwidth and 10X attenuation ratio make it suitable for high-speed signal measurements
• The small form factor and flexible probe tip make it easy to use in tight spaces
• The P6243 is a valuable tool for engineers and technicians who need to probe SMDs
• Value The Tektronix P6243 Active Probe is a high-quality probe that is built to last
• It is a valuable tool for engineers and technicians who need to probe SMDs
• The P6243 is backed by Tektronix’s industry-leading warranty and support
