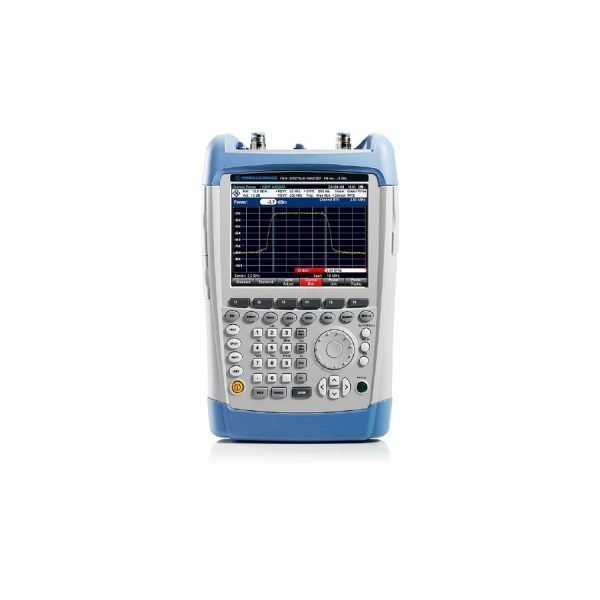

Rohde & Schwarz FSH20.30 Handheld Spectrum Analyzer, 9 kHz – 20 GHz

Designed for test and measurement applications, the Rohde & Schwarz FSH20.30 Handheld Spectrum Analyzer, 9 kHz – 20 GHz, F is a practical, professional instrument. Highlights: r&S FSH Handheld Spectrum Analyzer FSH20.30 FSH Series Features.

• R&S FSH Handheld Spectrum Analyzer FSH20.30 FSH Series Features:
• 9 kHz up to 20 GHz Excellent sensitivity (with preamplifier) of < –161 dBm (1 Hz) All-in-one analyzer:
• spectrum analyzer, network analyzer and CAT Internal tracking generator, VSWR bridge, bias tee
• Documentation and remote control via LAN or USB Frequently used functions can be set directly via keys
• Brilliant color display with monochrome mode for extreme conditions
• Rugged, splash-proof housing for use in the field
• Uninterrupted operation for up to 4.5 hours
• All-in-one Handheld Analyzer The R&S FSH handheld spectrum analyzer is a multi-purpose instrument
• It is a spectrum analyzer, network analyzer, cable and antenna analyzer, interference hunting analyzer and power meter
• Packed with features, a rugged design and built-in handle, the analyzer makes field measurements simple and efficient for any outdoor tasks
• It can be used for maintaining or installing transmitter systems, checking cables and antennas, assessing signal quality in broadcasting, radiocommunications and service, measuring electric field strength or in simple lab applications
• Power Measurements
• The R&S FSH uses the TDMA power function to measure time-domain power within a time division multiple access (TDMA) timeslot
• To make work easier for the user, all required instrument settings are already predefined for the GSM and EDGE standards
• The channel power measurement function determines the power of a definable transmission channel
• Channel power measurement for the LTE, WCDMA, GSM, TD-SCDMA, cdmaOne, CDMA2000 and
• 1xEV-DO digital mobile communications standards is performed at a keystroke
• The adjacent channel power can be displayed as an absolute value or relative to the useful carrier
• The R&S FSH offers predefined settings for various transmission standards such as WCDMA, CDMA2000, 1xEV-DO, TD-SCDMA and LTE, but parameters can also be user-defined
• Measurement of Spurious Emissions
• The R&S FSH measures spurious emissions of a base station using the spectrum emission mask (SEM) function and also offers a wide range of predefined masks
• Measurement of the Modulation Spectrum
• The gated sweep function is used to measure a pulsed signal only in the time interval in which the pulse is active
• This method makes it possible, for instance, to display the modulation spectrum of a GSM signal, a WLAN signal or a pulsed WiMAX signal
• One-port Cable Loss Measurements Simply connect one end of the cable to the R&S FSH measurement port
• The other end of the cable is terminated with a short circuit or left open
• Distance-to-Fault Measurements The built-in threshold function ensures that only true cable faults, i.e
• faults that exceed a tolerance limit, are listed
• This considerably simplifies measurement evaluation
• Channel Power Meter
• This standard function enables the R&S FSH to measure channel power without an external power sensor at the same accuracy as in spectrum analyzer mode
• The measurement amplitude range goes up to +30 dBm
• Measurements of Electromagnetic Fields
• The R&S FSH can reliably determine the effects of electromagnetic fields (EMF) caused by transmitter systems
• Field strength measurements are determined with directional and isotropic antennas
• Test Reports with the R&S FSH Wizard
• The R&S FSH wizard makes this procedure easy for the user and eliminates the need to consult the installation instructions
• The dialog based wizard guides the user through the measurements and automatically saves the results
• Operation in Different Languages The R&S FSH supports the following languages:
• English, German, Korean, Japanese, Chinese, Russian, Italian, Spanish, Portuguese, French and Hungarian
• Accessories Supplied
• Lithium-ion battery pack, USB cable, LAN cable, AC power supply, CD-ROM with R&S FSH4View software and documentation, quick start guide
• Rohde & Schwarz Alternate Product Number:
• 1314.2000.30 Frequency Range:
• 15.0 – 30.0 GHz Maximum Frequency:
• 2 Product Type:
• Handheld Series:
• FSH Series Mounting Type:
• Handheld Minimum Frequency:
• 9 kHz Noise Floor:
• 163 dBm Video:
