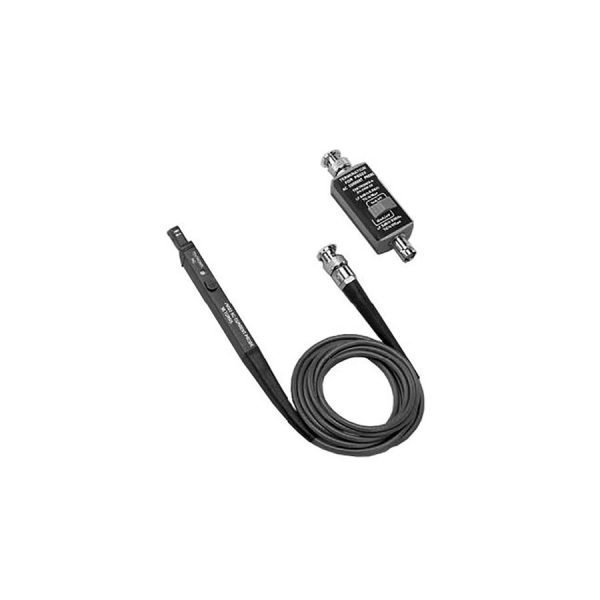

Tektronix P6022 AC Current Probe, 120 MHz, 100 A Peak

The Tektronix P6022 is a high-performance AC current probe designed for use with oscilloscopes and other test equipment. With a wide bandwidth of 935 Hz to 120 MHz, it is suitable for a variety of applications, including power electronics, motor drives, and automotive testing. The probe offers a sensitivity of 1 mA/A, a peak current rating of 100 A, and a maximum conductor diameter of 0.11 inches.

Key Features & Highlights

• Wide bandwidth of 935 Hz to 120 MHz for capturing fast transients
• High sensitivity of 1 mA/A for accurate low-current measurements
• Peak current rating of 100 A for demanding applications
• Maximum conductor diameter of 0.11 inches for easy clamping
• BNC connector for compatibility with standard oscilloscope inputs
• 1.5-meter cable length for convenient reach

Applications

The Tektronix P6022 is ideal for engineers and technicians who need to accurately measure AC currents in power electronics, motor drives, automotive systems, and other industrial applications. Its high bandwidth and sensitivity make it suitable for capturing fast transients and low-level signals, while its robust design ensures reliable performance in demanding environments.
