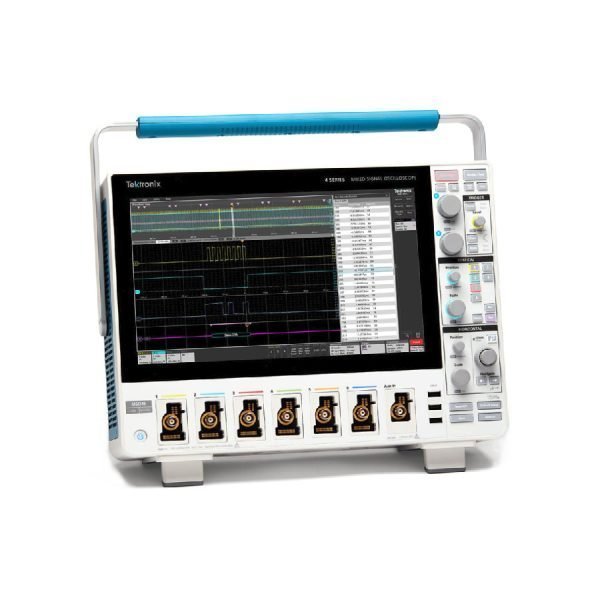

The Tektronix MSO46/4-BW-1000 is a high-performance mixed signal oscilloscope designed for engineers and technicians who demand precision and versatility. With 6 analog channels and 48 digital channels, this instrument provides a comprehensive view of complex systems, making it an essential tool for debugging, validation, and analysis.
Key Features & Highlights
- 1 GHz Bandwidth: Capture high-frequency signals with exceptional fidelity, ensuring accurate representation of fast-edge and high-speed serial data.
- 6 Analog + 48 Digital Channels: Simultaneously monitor mixed-signal designs, correlating analog and digital activity to quickly isolate faults.
- 6.25 GS/s Sampling Rate: Achieve high-resolution waveform capture, revealing fine details and transient events.
- 100 Mpts Memory Depth: Record long time windows without sacrificing sample rate, ideal for analyzing complex serial protocols and rare glitches.
- 10.1″ Capacitive Touchscreen: Navigate intuitively with pinch, zoom, and swipe gestures, streamlining setup and analysis.
- Advanced Triggering: Isolate specific events with a comprehensive set of trigger types, including serial bus, pulse width, and runt triggers.
- Comprehensive Analysis Tools: Perform FFT, Bode plots, and mask testing to gain deep insights into signal characteristics.
- Data Logging and Export: Save waveforms in multiple formats for documentation and further analysis, ensuring data integrity.
Applications
The MSO46/4-BW-1000 is ideal for a wide range of applications, including:
- Embedded system design and debug
- Power electronics analysis
- Serial bus validation (I2C, SPI, UART, CAN, LIN, etc.)
- Signal integrity testing
- Automotive electronics
- Aerospace and defense
With its combination of high bandwidth, deep memory, and mixed-signal capability, the Tektronix MSO46/4-BW-1000 empowers you to tackle the most challenging measurement tasks with confidence.
