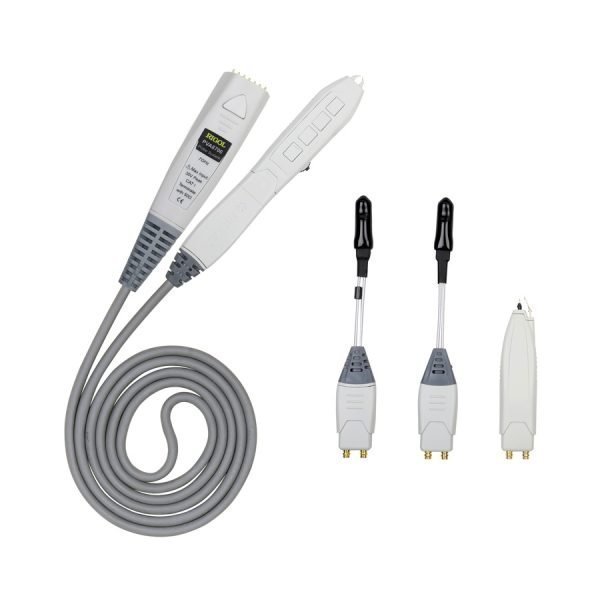

The RIGOL PVA8350 is a high-performance differential active probe designed for engineers and technicians who need to capture and analyze fast signals with precision. With a wide bandwidth of 3.5 GHz, this probe is ideal for high-speed digital, RF, and communication applications. The probe’s 3-position memory and light allow for convenient storage and recall of waveforms, while its auto-zero function ensures accurate measurements. Built with industrial-grade reliability, the PVA8350 is a valuable tool for any test and measurement setup.
Key Features & Highlights
- 3.5 GHz Bandwidth: Captures fast signals with high fidelity, suitable for high-speed serial buses, RF, and pulse measurements.
- 3-Position Memory and Light: Store and recall up to three waveform setups, with an adjustable light for visibility in dark environments.
- High Input Impedance: 1 MΩ // 10 pF minimizes loading on the circuit under test.
- Differential Input Range: ±10 V for versatile measurement of differential signals.
- Common Mode Rejection Ratio: >80 dB ensures accurate measurement in noisy environments.
- Fast Rise/Fall Time: <100 ps for precise edge characterization.
- Auto-Zero Function: Eliminates DC offset errors for accurate low-level measurements.
- Overload Protection: Safeguards the probe from accidental overvoltage conditions.
- Compact and Portable: Lightweight design (200 g) with battery or USB power for field use.
Applications
The RIGOL PVA8350 is ideal for a wide range of applications, including high-speed digital design validation, signal integrity analysis, power integrity measurements, and debugging of communication interfaces such as USB, PCIe, and DDR. Its high bandwidth and differential capability make it essential for engineers working on advanced electronics, aerospace, and automotive systems.
