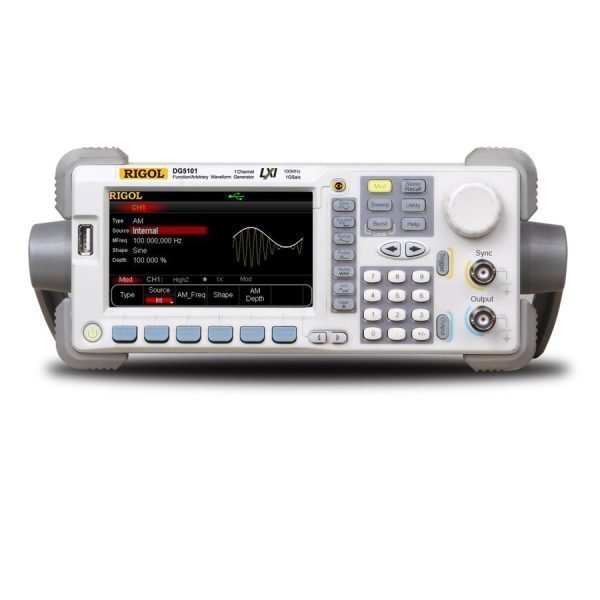

RIGOL DG5101 Arbitrary Waveform Generator
The RIGOL DG5101 is a high-performance arbitrary waveform generator from the DG5000 series, designed for demanding applications in research, development, and testing. With its 100 MHz bandwidth, 1 GS/s sample rate, and 14-bit resolution, it delivers exceptional signal fidelity and flexibility, making it an essential tool for engineers and scientists who require precise waveform generation.
Key Features & Highlights
- 100 MHz Bandwidth: Generates high-frequency signals with minimal distortion, covering a wide range of applications.
- 1 GS/s Sample Rate: Captures and reproduces fast-changing signals with high resolution.
- 14-bit Resolution: Ensures accurate representation of waveform details for precise testing.
- 128 Mpts Memory Depth: Stores large waveforms for extended playback and complex signal generation.
- Arbitrary Waveform Generation: Create custom waveforms with user-defined shapes and parameters.
- Built-in Function Generator: Generates standard waveforms (sine, square, triangle, etc.) with adjustable frequency, amplitude, and offset.
- Sweep Function: Performs frequency or amplitude sweeps for characterization and testing.
- Modulation Capabilities: Supports AM, FM, PM, and FSK modulation for signal analysis and simulation.
- Triggering and Synchronization: Provides flexible triggering options and synchronization with external devices.
- Intuitive User Interface: Simplifies operation with a clear and responsive touchscreen display.
Applications
The RIGOL DG5101 is ideal for a variety of applications, including:
- Research and development of electronic circuits and systems
- Testing and validation of communication systems
- Sensor simulation and characterization
- Education and training in electronics and signal processing
With its combination of high performance, deep memory, and versatile modulation, the RIGOL DG5101 provides a cost-effective solution for engineers and scientists seeking reliable waveform generation.
