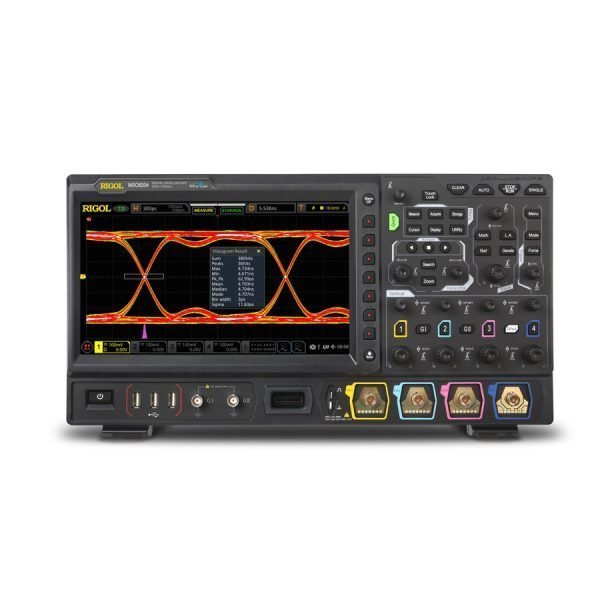

RIGOL MSO8204 Mixed Signal Oscilloscope
The RIGOL MSO8204 is a powerful mixed signal oscilloscope from the MSO8000 series, designed for engineers and technicians who demand high bandwidth and deep memory for complex signal analysis. With 4 analog and 16 digital channels, 2 GHz bandwidth, 10 GS/s maximum sample rate, and 500 Mpts memory depth, this instrument provides the performance needed for debugging high-speed digital designs, power electronics, and automotive systems.
Key Features & Highlights
- 4 Analog + 16 Digital Channels: Simultaneously capture and correlate analog and digital signals for comprehensive mixed-signal debugging.
- 2 GHz Bandwidth: Accurately measure high-frequency signals with minimal attenuation, ensuring reliable characterization of fast edges and high-speed serial buses.
- 10 GS/s Sample Rate: Capture transient events with exceptional detail, enabling precise timing measurements and waveform reconstruction.
- 500 Mpts Memory Depth: Record long time windows at high sample rates, allowing deep analysis of complex waveforms and rare anomalies.
- Advanced Triggering: Utilize edge, pulse width, logic, and other advanced trigger modes to isolate specific events of interest.
- Intuitive User Interface: Navigate through features with a responsive touchscreen and customizable display options for efficient operation.
Applications
The RIGOL MSO8204 is ideal for a wide range of applications, including embedded system design and debugging, power electronics analysis, automotive electronics testing, and telecommunications. Its combination of high bandwidth, deep memory, and mixed-signal capability makes it a versatile tool for both R&D and troubleshooting in industrial environments.
