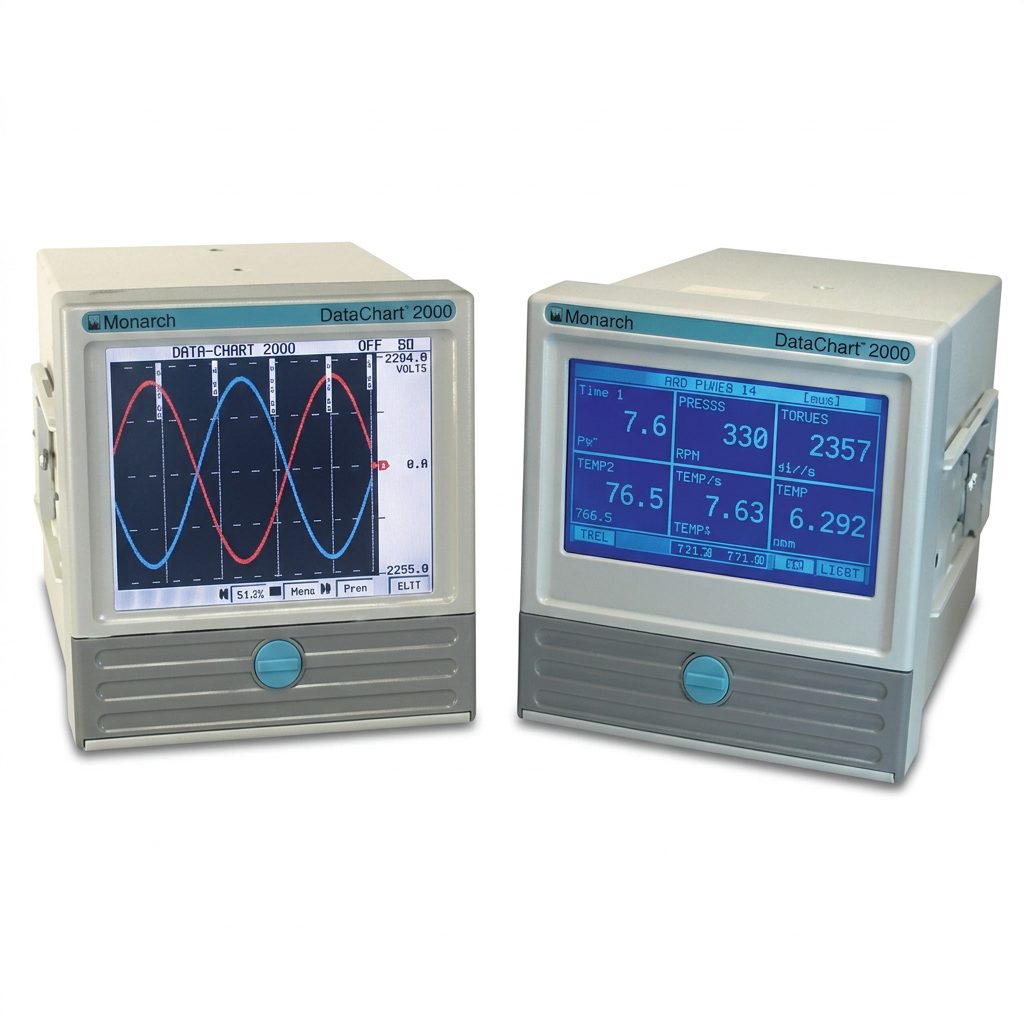

The Monarch Instrument DC2-C-1-U6-1-0-0-0-0 is a versatile chart recorder designed for demanding industrial data logging applications. This model supports 2, 4, 6, or 12 direct universal inputs, accommodating DC voltage, current, and thermocouples, making it a flexible solution for a wide range of process measurements. With high-speed storage capability of up to 8 samples per second per channel, it ensures accurate capture of transient events.
Key Features & Highlights
- Universal Inputs: 2, 4, 6, or 12 channels for DC voltage, current, and thermocouples.
- High-Speed Storage: Up to 8 samples per second per channel for precise data logging.
- Multiple Storage Media: Options include 3.5-inch 1.44MB disk or Compact Flash up to 2 GB.
- Brilliant Display: 5.6-inch TFT active matrix color display or 5-inch monochrome display with intuitive touchscreen control and anti-glare coating.
- Rugged Design: IP65 rated front panel for protection against dust and water ingress.
- Standard DIN Enclosure: 144mm x 144mm bezel for easy panel mounting.
- Outputs & Communication: 6 relay contact or solid state relay outputs, 3 digital control inputs, parallel printer output, RS232/RS485 serial options, and 10BaseT Ethernet connection.
- Companion Software: Enables configuration, communication, data analysis, printing, and export to standard spreadsheet/database applications.
Typical Applications
This chart recorder is well-suited for process monitoring in industries such as manufacturing, chemical processing, food and beverage, pharmaceutical, and utilities. It is ideal for applications requiring reliable data acquisition, trend recording, and alarm management in harsh environments.
