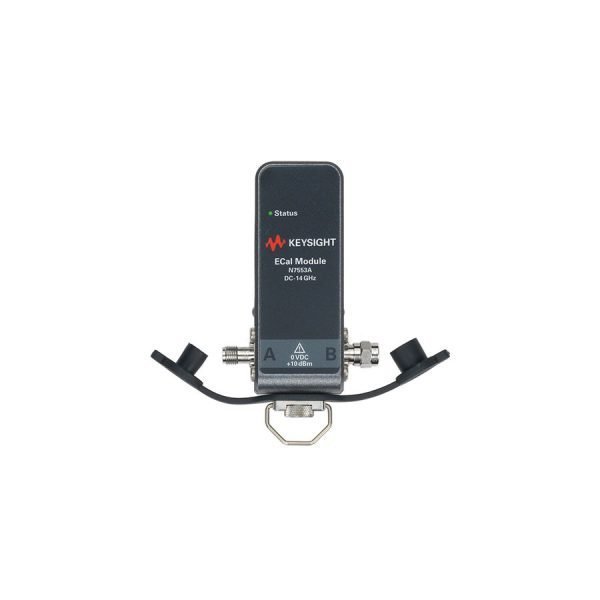

Keysight N7553A/3FF ECal Electronic Calibration Module, 2-Port, DC to 14 GHz

The Keysight N7553A/3FF Electronic Calibration Module (ECal) is a compact, high-performance calibration solution designed for vector network analyzers (VNAs) and other RF test equipment. Operating from DC to 14 GHz with a 2-port configuration, this ECal module provides accurate and repeatable calibration, ensuring the reliability and accuracy of your measurements. Ideal for R&D, manufacturing, and field service, the N7553A/3FF simplifies the calibration process, saving time and reducing measurement uncertainty.

Key Features & Highlights

• Frequency Range: DC to 14 GHz, covering a wide range of RF and microwave applications.
• 2-Port Configuration: Supports full 2-port calibration for vector network analyzers.
• Calibration Types: Open, short, load, and through (OSLT) for comprehensive error correction.
• High Accuracy: ±0.05 dB magnitude and ±0.5° phase accuracy for reliable measurements.
• Excellent Repeatability: ±0.02 dB magnitude and ±0.2° phase repeatability ensures consistent results.
• Compact and Portable: Lightweight design for easy integration into test setups and field use.
• Traceable to National Standards: Ensures measurement integrity and compliance with quality standards.

Applications

The Keysight N7553A/3FF ECal is suitable for a variety of applications, including:

• Production testing of RF components and modules
• Research and development of microwave circuits and systems
• Field calibration of network analyzers for on-site measurements
• Quality assurance and verification in manufacturing environments

By providing fast, accurate, and repeatable calibration, the N7553A/3FF enhances measurement confidence, reduces downtime, and improves overall productivity in any RF testing environment.
