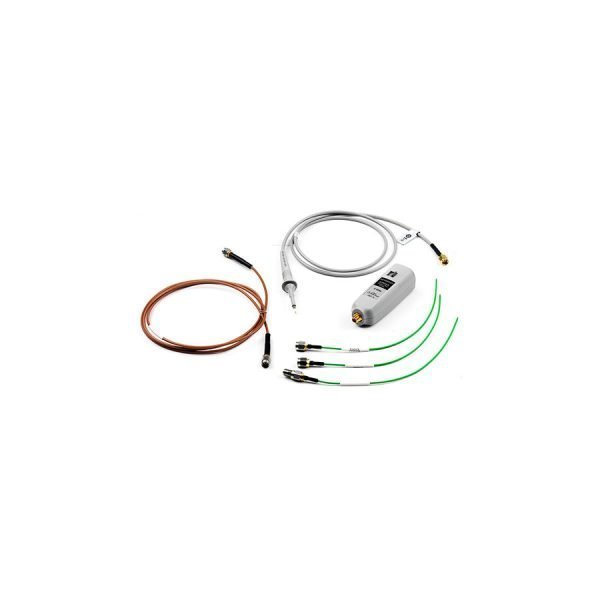

Keysight N7020A Power Rail Probe is a 2 GHz active probe for power-integrity measurements, rail analysis, and electrical design verification. Its 1:1 attenuation and low-noise performance support detailed oscilloscope measurements of power rails.
Product overview
The N7020A provides 2 GHz bandwidth, a 24 V offset, an 850 mV active range, and 50 kOhm DC input impedance. This combination is suited to engineers investigating power-rail behavior during development, troubleshooting, and design verification.
Applications and selection
Use the probe for power-integrity analysis, DC-DC converter and voltage-regulator testing, embedded-system debugging, and EMI troubleshooting. Before ordering, confirm oscilloscope compatibility, required bandwidth, expected rail voltage, probe accessories, and the intended test setup.
Technical information
Keysight N7020A specifications include 2 GHz bandwidth, 1:1 attenuation, 24 V offset, 850 mV active range, 50 kOhm DC input impedance, and low-noise operation. These stated specifications should be matched to the oscilloscope and measurement requirements for the application.
Request a quotation
Contact Indo Multimeter for availability, lead time, technical documentation, and quotation support. Include the N7020A model, quantity, oscilloscope details, and intended application so the required configuration can be reviewed.
