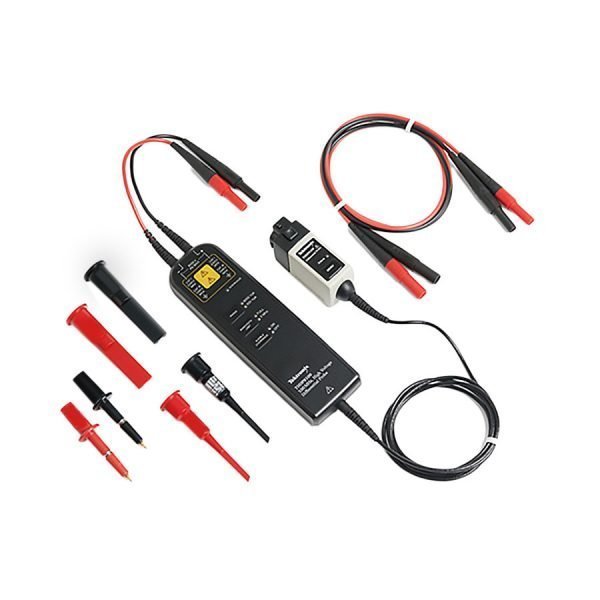

The Tektronix THDP0100 is a high-performance differential probe designed for accurate and reliable measurements in high-voltage applications. With a bandwidth of 100 MHz, high input impedance of 100 MΩ, and low input capacitance of 2.5 pF, this probe ensures minimal loading on the circuit under test while delivering exceptional signal fidelity. Whether you are working with power electronics, motor drives, or industrial systems, the THDP0100 provides the precision and safety you need.
Key Features & Highlights
- High Voltage Rating: Safely measures up to 6000V (DC + peak AC) for demanding applications.
- Selectable Attenuation: Choose between 100X and 1000X ratios to match your measurement range.
- Wide Bandwidth: 100 MHz bandwidth captures fast transients and high-frequency components.
- High Input Impedance: 100 MΩ input impedance minimizes loading effects on the circuit.
- Low Input Capacitance: 2.5 pF capacitance preserves signal integrity.
- Ground Reference Compensation: Ensures accurate measurements in noisy environments.
- Auto-Zero Function: Simplifies calibration and reduces measurement uncertainty.
- Compact and Lightweight: Easy to handle and integrate into your test setup.
Applications
The Tektronix THDP0100 is ideal for engineers and technicians working with high-voltage systems, including power supplies, inverters, motor drives, and industrial equipment. It is also suitable for floating measurements where isolation and safety are critical. With its robust design and reliable performance, the THDP0100 helps you troubleshoot, optimize, and validate your designs with confidence.
