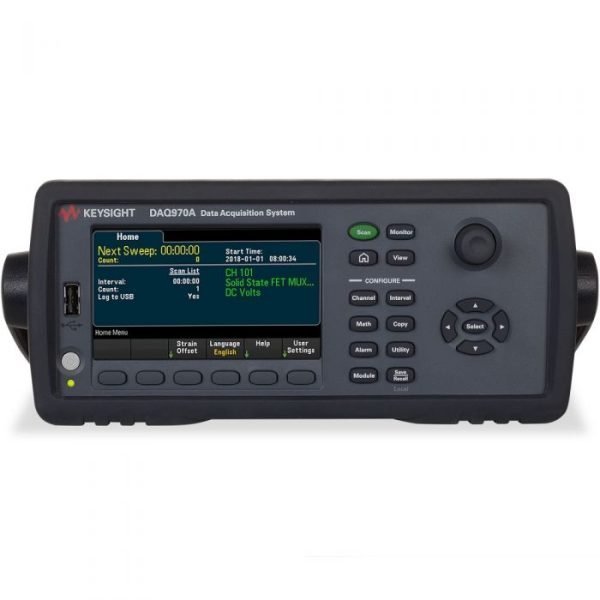

The Keysight DAQ970A Multifunction Data Logger combines a three-slot data-acquisition mainframe with flexible plug-in modules and an integrated digital multimeter. It is built for automated test, measurement, scanning, and logged analysis.
Key specifications
- Three-slot mainframe with USB and LAN connectivity.
- Choice of 8 switch and control plug-in modules.
- Internal 6 1/2-digit, 22-bit DMM with improved measurement speed and accuracy.
- Scan rates up to 450 channels per second with the DAQM900A solid-state multiplexer.
- Measures thermocouples, RTDs, thermistors, AC/DC voltage and current, resistance, frequency/period, diodes, and capacitance.
- Low-current ranges include 1 microamp DC and 100 microamp AC; resistance measurement extends to 1000 megaohms.
- 100,000 readings of non-volatile memory, high/low alarm limits per channel, and 4 TTL alarm outputs.
- BenchVue DAQ Control and Analysis software supports test setup, real-time display, analysis, logging, and export without programming.
- Auto-calibration compensates for internal drift caused by time and temperature changes.
Recommended applications
Use the DAQ970A for electronic test, sensor measurement, production verification, laboratory data logging, and multi-channel monitoring. Confirm the required plug-in module and software configuration before ordering.
