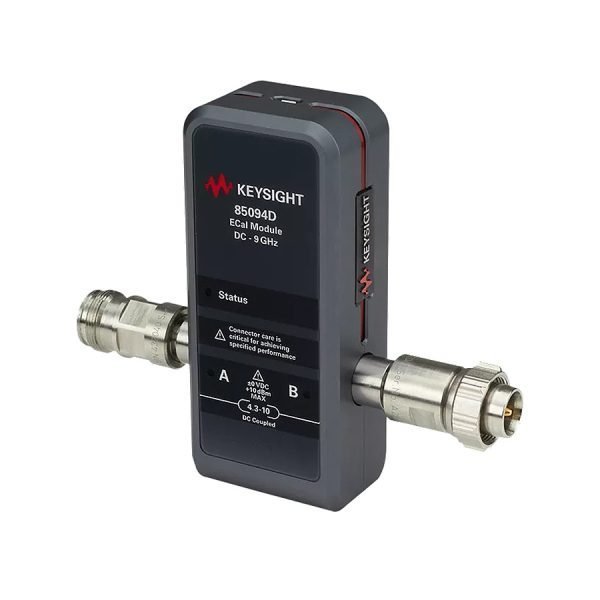

The Keysight 85094D/003/00M RF Ecal Module is a high-performance calibration solution designed for the Keysight 8509xD Series of vector network analyzers (VNAs). Covering a wide frequency range of 300 kHz to 9 GHz, this module provides accurate and repeatable calibration, ensuring reliable measurements for a variety of RF and microwave applications.
Key Features & Highlights
- Wide Frequency Coverage: 300 kHz to 9 GHz, suitable for diverse testing needs.
- 4.3-10 Connectors (m-m): Robust and reliable interface for high-frequency performance.
- Comprehensive Calibration Standards: Includes Open, Short, Load, and Through standards for full calibration.
- High Accuracy: ±0.05 dB magnitude and ±0.5° phase accuracy.
- Excellent Repeatability: ±0.02 dB magnitude and ±0.2° phase repeatability.
- Durable Construction: Built to withstand harsh environments, ensuring long-term reliability.
Applications
This RF Ecal module is ideal for antenna testing, filter characterization, device modeling, and other precision RF measurements. It enhances VNA capabilities, reduces calibration time, and ensures compliance with industry standards.
