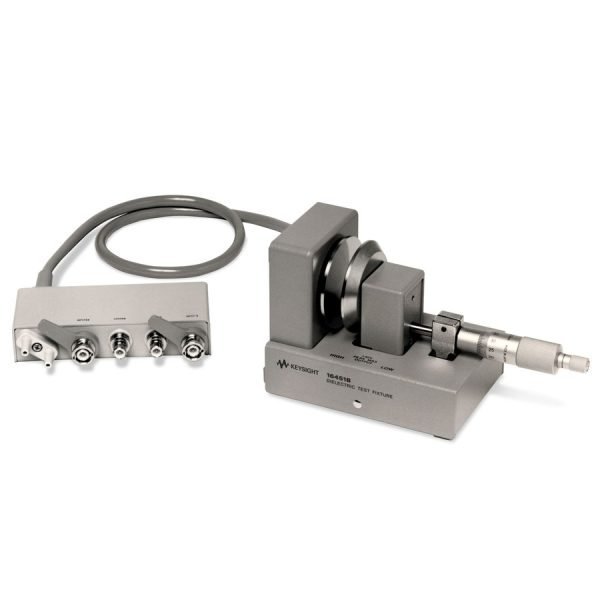

Keysight 16451B Dielectric Test Fixture for ASTM D150, 30 MHz

Keysight 16451B Dielectric Test Fixture

The Keysight 16451B Dielectric Test Fixture is a precision instrument designed for measuring the dielectric constant and loss tangent of solid and liquid materials using the parallel plate method. With a frequency range of 100 kHz to 30 MHz and compliance with ASTM D150 standards, this fixture is essential for accurate material characterization in research, development, and manufacturing environments.

Key Features & Highlights

• Frequency Range: 100 kHz to 30 MHz for versatile testing across various applications.
• Sample Compatibility: Accommodates sample thicknesses from 0.1 mm to 10 mm and diameters from 25 mm to 100 mm.
• High Accuracy: Dielectric constant accuracy of ±0.5% and loss tangent accuracy of ±0.001 ensure reliable measurements.
• Built-in Temperature Sensor: Enables temperature monitoring during tests for enhanced precision.
• ASTM D150 Compliance: Meets industry standards for dielectric testing, ensuring quality assurance.

Applications

This test fixture is ideal for use in research and development laboratories, quality control departments, and manufacturing facilities where precise dielectric properties of materials are critical. It is suitable for testing insulating materials, polymers, ceramics, and other solid and liquid dielectrics.
