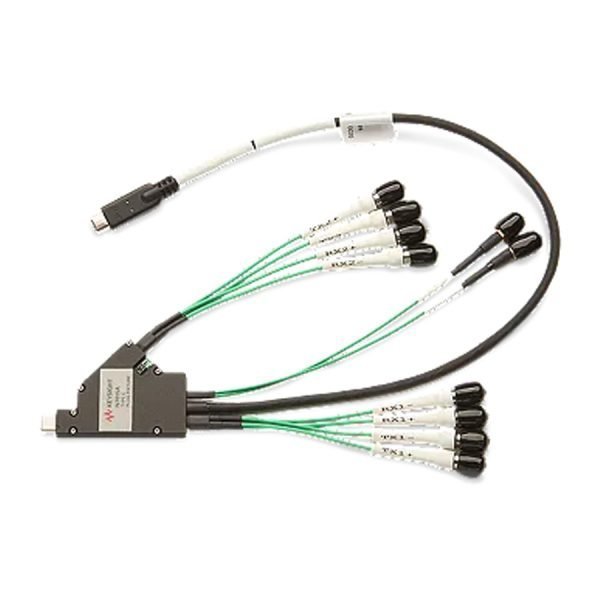

Keysight N7015A Type-C High-Speed Test Fixture, 30 GHz, for Infiniium V-Series, 90000 X, Z-Series

The Keysight N7015A Type-C high-speed test fixture is engineered for engineers and technicians who demand precise signal integrity measurements in USB Type-C applications. With a 30 GHz bandwidth, this fixture enables accurate characterization of high-speed signals, making it an essential tool for validating designs in Infiniium V-Series, 90000 X, and Z-Series oscilloscopes.

Key Features & Highlights

• 30 GHz bandwidth for high-fidelity signal capture and analysis.
• Compatible with Infiniium V-Series, 90000 X, and Z-Series oscilloscopes, ensuring seamless integration.
• Type-C interface supports USB Type-C testing, including SuperSpeed and alternate modes.
• Precision construction minimizes signal loss and reflections for accurate measurements.
• Robust design for reliable performance in demanding test environments.

Applications

This test fixture is ideal for R&D, validation, and compliance testing of USB Type-C devices, including smartphones, laptops, and peripherals. It is also suitable for signal integrity analysis in high-speed digital design and manufacturing test.
