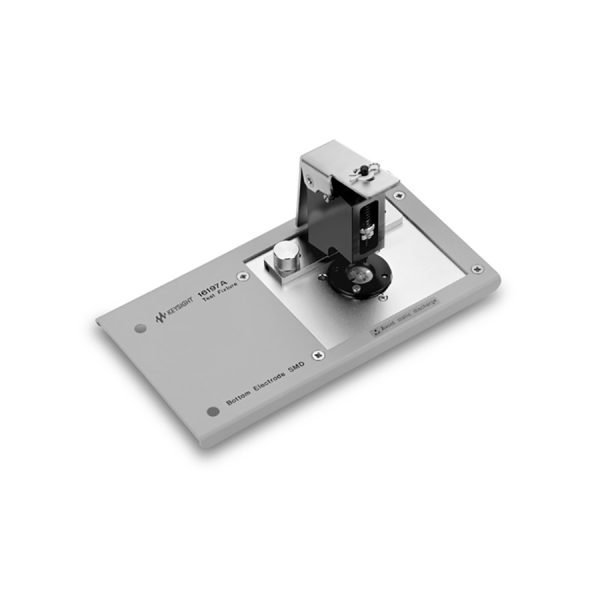

Keysight 16197A/001 LCR Test Fixture for Bottom Electrode SMDs

Keysight 16197A/001 LCR Test Fixture

The Keysight 16197A/001 is a precision LCR test fixture engineered for testing bottom electrode surface mount devices (SMDs). Part of the 16197 series, this fixture supports device sizes from 0201 to 0603 inches (0.5 mm x 0.3 mm to 1.6 mm x 0.8 mm) and provides accurate, repeatable impedance measurements essential for semiconductor and electronics testing.

Key Features & Highlights

• Designed specifically for bottom electrode SMDs, ensuring proper contact and measurement integrity.
• Accommodates a wide range of device sizes: 0201 to 0603 inches (0.5 mm x 0.3 mm to 1.6 mm x 0.8 mm).
• Pitch range from 0.5 mm to 1.27 mm (0.020 to 0.050 inches) for versatile testing.
• Low contact resistance (<50 mΩ) and high insulation resistance (>100 MΩ) for reliable measurements.
• Minimal parasitic capacitance (<1 pF) and inductance (<1 nH) to preserve signal integrity.
• Easy to use and maintain, reducing downtime in production environments.
• Includes 0201/0603 mm guide set for precise device positioning.

Applications

The Keysight 16197A/001 is ideal for production testing, quality control, and R&D applications involving bottom electrode SMD components such as capacitors, inductors, and resistors. It is widely used in semiconductor testing, electronics manufacturing, and component characterization.
