GaGe CSE4447 CompuScope 4-Channel 16-Bit 100MS/s PCIe Oscilloscope

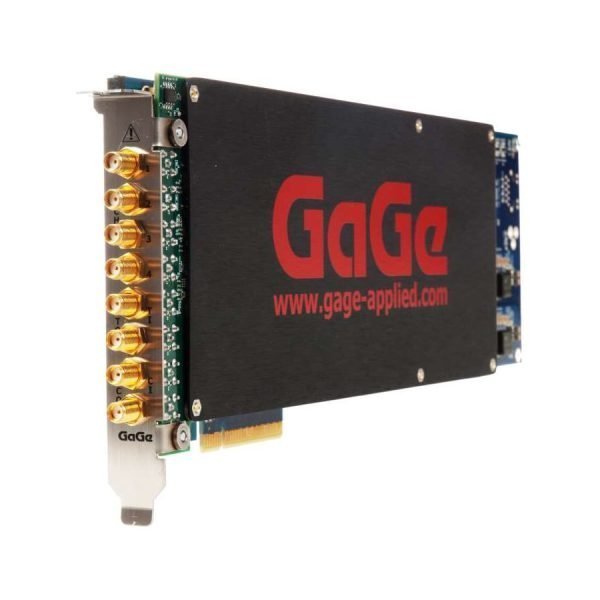

GaGe CSE4447 CompuScope: High-Performance PCIe Oscilloscope

The GaGe CSE4447 CompuScope is a powerful PC-based oscilloscope from the Oscar Express Series, designed for engineers and researchers who demand high precision and speed. With 4 analog input channels, 16-bit resolution, and a sampling rate of 100 MS/s per channel (2 GS/s aggregate), this PCIe oscilloscope delivers exceptional signal fidelity for a wide range of applications.

Key Features & Highlights

• 4 Analog Input Channels: Capture multiple signals simultaneously for comprehensive analysis.
• 16-Bit Resolution: Achieve high dynamic range and precise measurements, ideal for low-level signal detection.
• 100 MS/s Sampling Rate: Each channel samples at up to 100 MS/s, with a 2 GS/s aggregate rate for multi-channel acquisitions.
• 2 GB Memory Depth: Record long waveforms without compromising on sampling rate.
• PCIe 2.0 x4 Interface: Ensures high-speed data transfer to the host computer, minimizing latency.
• Oscar Express Series Technology: Optimized for high-throughput data streaming and reliable performance.
• Advanced Triggering and Analysis: Includes FFT, power spectrum, and waveform statistics for in-depth signal analysis.
• Intuitive Software Interface: User-friendly software simplifies setup and data visualization.

Applications

The GaGe CSE4447 is well-suited for applications such as:

• Research and development in electronics and physics
• Automotive and aerospace testing
• Medical device testing
• Industrial automation and control
• Communications and signal integrity analysis

With its combination of high resolution, fast sampling, and robust data transfer, the GaGe CSE4447 CompuScope is a reliable choice for professionals seeking accurate and efficient signal acquisition.
