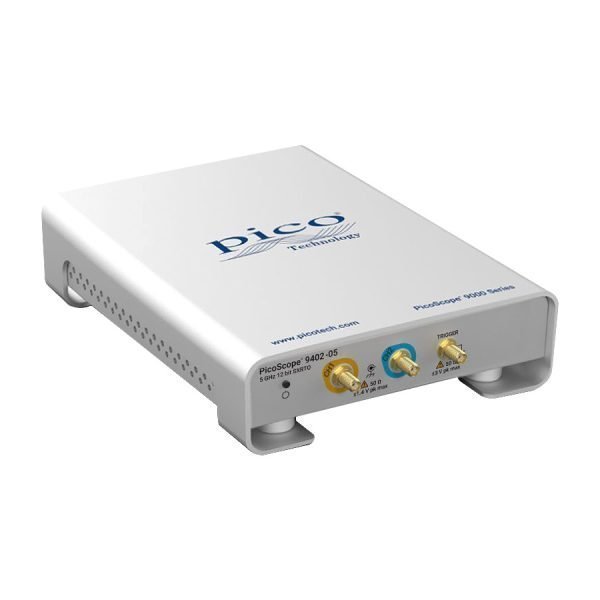

The Pico Technology 9402-05 PicoScope 9400 Series PC USB Oscilloscope is a high-performance instrument designed for engineers and technicians who demand precision in high-frequency signal analysis. With 5 GHz bandwidth and 2 channels, this oscilloscope provides exceptional clarity for capturing fast transients and complex waveforms. The Sampler-Ext Real-Time technology enables ultra-high sampling rates, ensuring accurate representation of even the most fleeting events.
This PC-based oscilloscope leverages the power of PicoScope 9400 Series software, offering advanced visualization, measurement, and analysis tools. Its compact and portable design makes it ideal for both laboratory and field use, while the USB interface ensures seamless connectivity and fast data transfer.
Key Features & Highlights
- 5 GHz Bandwidth: Capture high-frequency signals with exceptional detail.
- 2 Analog Channels: Monitor two signals simultaneously with independent controls.
- Sampler-Ext Real-Time: Achieve sampling rates up to 12.5 GS/s for accurate transient capture.
- 12-Bit Resolution: Obtain precise measurements with a wide dynamic range.
- Deep Memory: Store up to 100 million samples per channel for extended analysis.
- Advanced Triggering: Isolate elusive signals with sophisticated trigger modes.
- USB 3.0 Interface: Enjoy fast data transfer and easy connectivity.
Applications
The PicoScope 9400 Series is ideal for high-speed digital design, RF and microwave testing, signal integrity analysis, and research applications. Whether you’re debugging high-speed serial buses, characterizing RF components, or analyzing complex modulation schemes, this oscilloscope provides the performance and flexibility you need.
