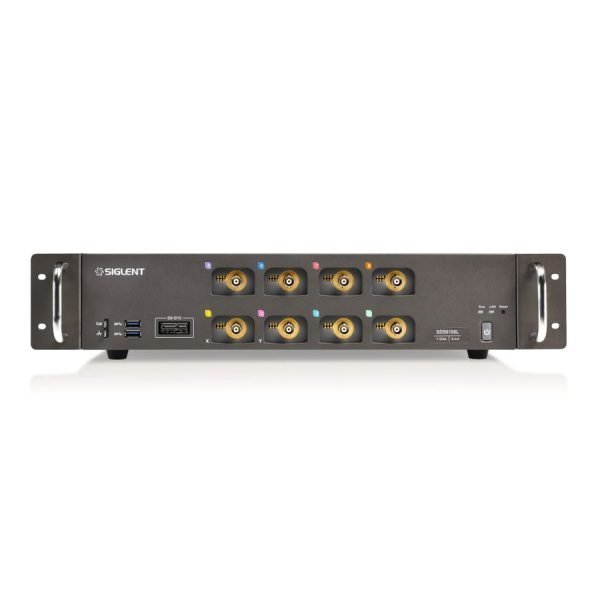

Siglent SDS6108L 8-Channel PC-Based Oscilloscope, 1 GHz

The Siglent SDS6108L is a high-performance 8-channel PC-based oscilloscope from the SDS6000L series, designed for demanding applications in electronics, telecommunications, and industrial testing. With its 1 GHz bandwidth, 2 GSa/s real-time sample rate, and 100 Mpts memory depth, this digital storage oscilloscope (DSO) delivers exceptional signal acquisition and analysis capabilities for engineers and technicians who need to monitor multiple signals simultaneously.

Key Features & Highlights

• 8 Analog Input Channels: Simultaneously monitor up to eight signals, ideal for multi-channel systems, power electronics, and mixed-signal debugging.
• 1 GHz Bandwidth: Capture fast and complex signals with high fidelity, ensuring accurate measurements for high-speed digital and RF applications.
• 2 GSa/s Real-Time Sample Rate: Provides detailed waveform reconstruction, minimizing aliasing and capturing transient events with confidence.
• 100 Mpts Memory Depth: Extended acquisition time allows for deep analysis of long-duration signals and rare anomalies.
• 12-Bit Vertical Resolution: Enhanced amplitude accuracy for precise measurement of small signal variations.
• 10.1-Inch Capacitive Touchscreen: Intuitive user interface with responsive touch controls, simplifying operation and navigation.
• Advanced Triggering: Edge, pulse width, video, and more, enabling precise isolation of specific events.
• Serial Bus Decoding: Decode I2C, SPI, CAN, RS232/485 protocols for efficient digital system debugging.
• Built-in Function Generator: 2-in-1 functionality with arbitrary waveform generation for stimulus-response testing.
• Comprehensive Analysis Tools: Extensive measurement and math functions for thorough signal characterization.
• PC-Based Flexibility: USB and Ethernet connectivity allow remote control and data transfer, integrating seamlessly into automated test systems.

Applications

The Siglent SDS6108L is well-suited for a variety of applications, including:

• Design and verification of embedded systems with multiple buses and power rails.
• Power electronics testing, such as analyzing multi-phase inverters and power supplies.
• Telecommunications signal analysis, including high-speed serial data validation.
• Educational laboratories where multiple signals need to be observed simultaneously.
• Industrial automation and control system troubleshooting.

With its combination of high bandwidth, deep memory, and multi-channel capability, the SDS6108L offers exceptional value for professionals seeking a reliable and versatile PC-based oscilloscope.
