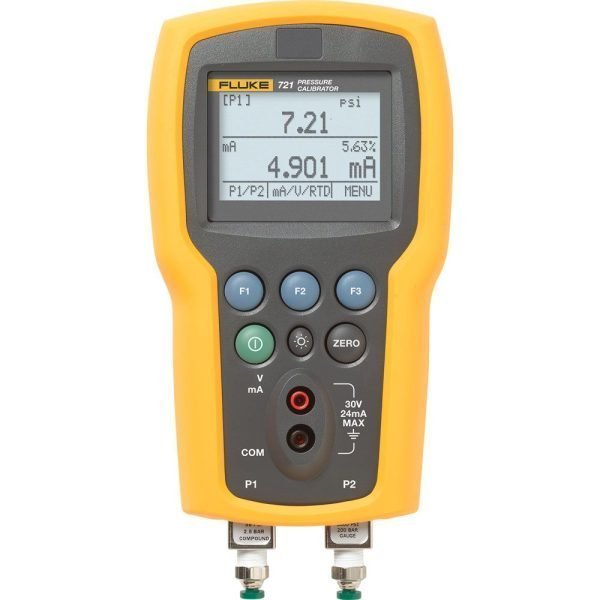

Fluke 721-3650 Dual Sensor Pressure Calibrator 36PSIG/5000PSIG

The Fluke 721-3650 is a high-accuracy dual sensor pressure calibrator engineered for demanding industrial environments. Ideal for gas flow calibration and custody transfer applications, this handheld calibrator combines two isolated stainless steel pressure sensors with 0.025% accuracy, a Pt100 RTD input for temperature measurement, and the ability to measure 4-20 mA signals. Its internal 24 V loop power supply allows you to power transmitters under test, while the large backlit graphic display shows up to three inputs simultaneously.

Key Features & Highlights

• Dual isolated stainless steel pressure sensors: 36 PSIG and 5000 PSIG ranges
• 0.025% accuracy for precise pressure measurement
• Pt100 RTD input for temperature measurement (probe optional)
• Measures 4-20 mA signals and up to 30 V DC
• Internal 24 V loop power supply for transmitter testing
• Extendable pressure range with external 700 series pressure modules (29 ranges)
• Large backlit graphic display showing up to three inputs simultaneously
• Stores five instrument setups for quick recall
• Rugged handheld design with soft case and AA battery operation

Applications

The Fluke 721-3650 is perfect for calibration technicians and engineers working in gas flow measurement, custody transfer, and industrial process calibration. Its dual sensors and versatile inputs make it suitable for calibrating pressure transmitters, temperature sensors, and loop-powered devices in the field or in the lab.
