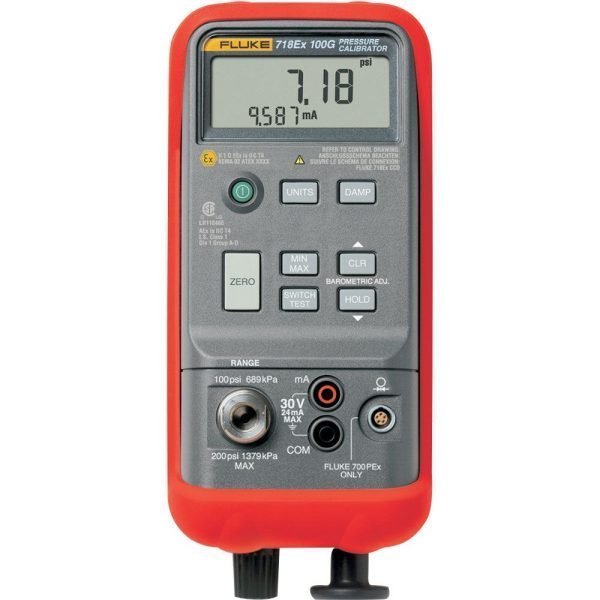

The Fluke 718EX is an intrinsically safe pressure calibrator engineered for demanding applications in hazardous areas. Certified to ATEX II 1G EEx ia IIC T4, this rugged instrument ensures safety and reliability when calibrating pressure and current in explosive environments. With a built-in pressure/vacuum pump, fine adjust vernier, and bleed valve, the 718EX provides precise pressure generation and measurement up to 300 psi (20 bar) with an accuracy of 0.05% of full span. For higher pressures, it supports external Fluke 700PEx Pressure Modules up to 200 bar. The device also measures current with 0.02% accuracy and 0.001 mA resolution, and includes a pressure switch test function for comprehensive calibration tasks.
Key Features & Highlights
- Intrinsically safe: ATEX II 1G EEx ia IIC T4 certified for use in explosive atmospheres
- Built-in pressure/vacuum hand pump with fine adjust vernier and bleed valve
- Pressure ranges: 30, 100, and 300 psi (2, 7, and 20 bar)
- Pressure measurement accuracy: 0.05% of full span
- External pressure measurement up to 200 bar using Fluke 700PEx modules
- Current measurement: 0.02% accuracy, 0.001 mA resolution
- Pressure switch test function for verifying switch set points
- Min-Max Hold functions for capturing fluctuating readings
- Compact, lightweight design with simple push-button interface
- Includes protective holster, test leads, clips, and comprehensive manuals
Applications
The Fluke 718EX is ideal for calibration technicians, instrumentation engineers, and maintenance professionals working in oil & gas, chemical processing, pharmaceutical, and other industries where explosive atmospheres are present. It is perfect for calibrating pressure transmitters, switches, and gauges in the field, ensuring safety and accuracy in hazardous locations.
