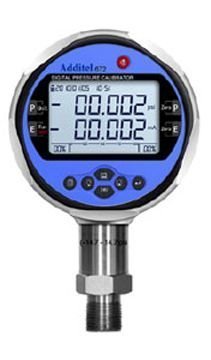

Additel ADT672-02-CP5-BAR-M Pressure Calibrator

Additel ADT672-02-CP5-BAR-M Pressure Calibrator combines pressure measurement with transmitter power and electrical signal testing for calibration work.

Applications and selection

Choose this model when a 0.02% FS pressure measurement uncertainty, mA/V input, pressure switch testing, HART communication, and a 24 V loop supply are required. Min/Max/Hold, dual readout, and data logging help capture changing measurements.

Technical information

• ADT 672-02 pressure measurement uncertainty: 0.02% FS.
• Pressure ranges up to 36,000 psi (2,500 bar).
• mA or V measurement with 0.02% RD and 0.003% FS accuracy.
• Advanced temperature compensation and a large, backlighted 6-digit display.
• Rechargeable battery or AC adapter; NIST traceable calibration.
• Includes 110/220 V external power adapter, two 1.5 m test leads, and two 0.156-inch test hoses for differential pressure gauge use.

indomultimeter-seo-rewrite-v1

Request a quotation for the Additel ADT672-02-CP5-BAR-M for your pressure measurement and simulation application.
