The Druck PM620T-1000PSIA is a precision pressure module designed for demanding industrial calibration applications. Leveraging Druck’s unique TERPS resonant silicon pressure sensor technology, this module delivers exceptional stability and accuracy, making it an ideal choice for critical pressure measurement tasks.
Key Features & Highlights
- High Accuracy: Total uncertainty from 0.0125% FS, providing laboratory-level accuracy in the field.
- Wide Pressure Range: Measures from 0 to 1000 PSIA, covering a broad spectrum of industrial applications.
- Advanced TERPS Technology: Resonant silicon sensor offers up to four times greater stability than conventional sensors, reducing drift and extending calibration intervals.
- Tool-Free Connectivity: Simple screw-fit design makes pressure and electrical connections without tools, sealing tape, or cables.
- Fully Interchangeable: Digital characterisation allows modules to be swapped without set-up or calibration, minimising downtime.
- Temperature Compensated: Accurate performance from -10°C to 50°C (14°F to 122°F).

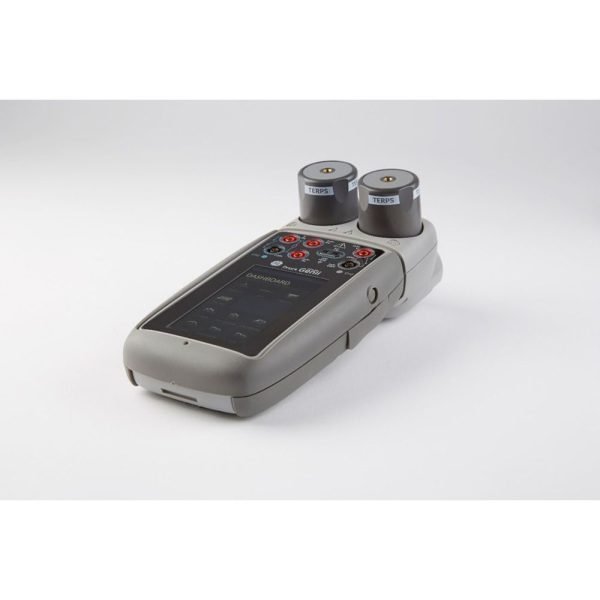

- Compatibility: Works with Druck pressure calibrators such as DPI612 and DPI620G/DPI620G-IS series.
- Rugged Construction: Built to withstand harsh industrial environments.
Applications
The PM620T-1000PSIA is suitable for a wide range of pressure calibration tasks in industries such as oil and gas, chemical processing, power generation, and manufacturing. Its portability and ease of use make it ideal for field calibration, while its high accuracy supports laboratory and workshop use. Whether you are verifying pressure transmitters, gauges, or switches, this module provides reliable, repeatable measurements to ensure process safety and efficiency.
