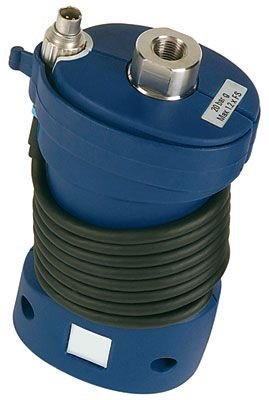

Druck IUPM100 Pressure Module

Druck IUPM100 Pressure Module Overview

The Druck IUPM100 is a digital pressure module for expanding pressure measurement capability on compatible Druck instruments. It is designed for pressure calibration and works with all DPI 800 and DPI 150 Series models.

Applications and Selection

Select the IUPM100 when interchangeable pressure measurement is needed for DPI 800 or DPI 150 Series equipment. It supports gauge and absolute pressure versions and is suited to calibration and industrial pressure measurement work.

Technical Information

• Compatible with all DPI 800 and DPI 150 Series models
• Pressure range: 10 inH2O to 10,000 psi (25 mbar to 700 bar)
• Gauge and absolute versions
• Accuracy: 0.05% full scale (FS), all inclusive
• Digital output sensor module; calibration certificate included

Request a Quotation

Contact Indomultimeter for a quotation on the Druck IUPM100 Pressure Module and confirm the configuration for your instrument.
