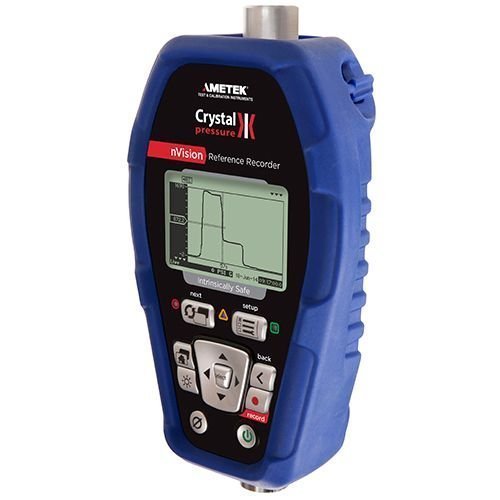

The Crystal Engineering NV-4AA-RTD100-15KPSI-BARO-B is a multifunction datalogger and pressure transducer engineered for the most demanding industrial applications. Combining high-accuracy pressure measurement with data logging capabilities, this instrument delivers exceptional performance and reliability in harsh environments. With the ability to replace a deadweight tester, it offers accuracy up to 0.025% of reading, making it a trusted tool for calibration professionals.
Key Features & Highlights
- Measures gauge, absolute, and differential pressure up to 15,000 psi / 1000 bar / 100 MPa
- Accuracy up to 0.025% of reading for precise measurements
- RTD temperature input for comprehensive data collection
- Barometric reference for absolute pressure measurements
- 500,000 data points storage capacity
- 10 readings per second from 2 modules for fast data acquisition
- Replaceable CPF adapter to extend product life
- Displays live data graphically without a PC
- Connects to a PC for live viewing or export to tamper-proof digital records
- Compensates for temperature effects from -20 to 50°C
- Includes calibration certificate with test data at 5 different temperatures from an A2LA accredited laboratory
Applications
This versatile datalogger is ideal for field calibration, process verification, and industrial testing. Its rugged design withstands harsh conditions, including submersion in 3 feet of water, making it suitable for use in remote or challenging environments. Whether in a laboratory or on-site, the NV-4AA-RTD100-15KPSI-BARO-B provides the accuracy and reliability required for critical pressure and temperature measurements.
