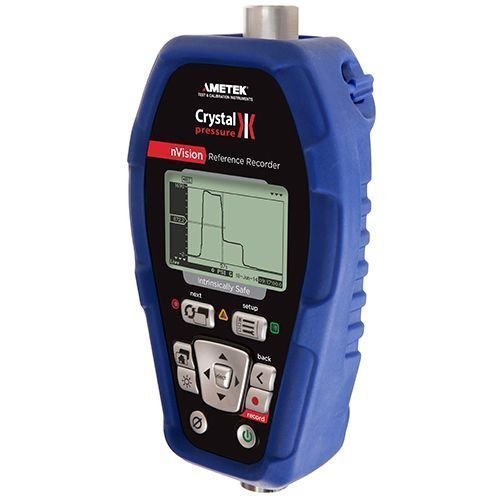

The Crystal Engineering NV-4AA-RTD100-1KPSI-BARO is a multifunction data logger designed for professionals who demand precision and durability in the field. This versatile instrument combines gauge/absolute pressure measurement up to 1000 psi, RTD temperature sensing, and electrical signal logging (voltage, current, switch) into a single rugged unit. With an accuracy of up to 0.025% of reading, it can replace a deadweight tester for many calibration tasks, while its IP67-rated housing withstands immersion in up to 3 feet of water.
Key Features & Highlights
- High Accuracy: Up to 0.025% of reading for pressure measurements, ensuring reliable calibration results.
- Multifunction Capability: Measures pressure, temperature (RTD), voltage, current, and switch status, reducing the need for multiple devices.
- Large Data Logging Capacity: Stores up to 500,000 data points at a sampling rate of 10 readings per second from two modules.
- Rugged & Portable: IP67-rated to withstand water immersion and designed for field use; includes a replaceable CPF adapter to minimize wear.
- Graphical Display: View live data graphically on the device without needing a PC.
- PC Connectivity: Connect to a PC for live data viewing or export tamper-proof digital records.
- Temperature Compensation: Accuracy is maintained across -20°C to 50°C, with a calibration certificate from an A2LA accredited laboratory at five different temperatures.
Typical Applications
The NV-4AA-RTD100-1KPSI-BARO is ideal for calibration technicians, quality assurance engineers, and maintenance professionals in industries such as oil and gas, chemical processing, pharmaceutical manufacturing, and utilities. It is well-suited for field calibration of pressure transmitters, temperature sensors, and loop calibrations, as well as for verifying system performance in harsh environments.
