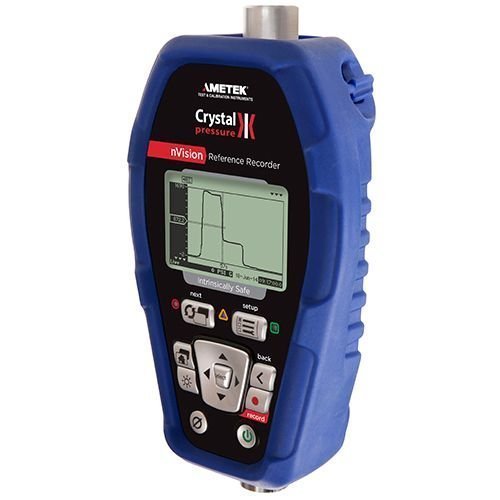

Crystal Engineering NV-4AA-100PSI-15KPSI Multifunction Data Logger

Crystal Engineering NV-4AA-100PSI-15KPSI Multifunction Data Logger

The Crystal Engineering NV-4AA-100PSI-15KPSI is a versatile multifunction data logger designed for demanding industrial environments. It provides accurate pressure measurement up to 15,000 psi (1000 bar / 100 MPa) with an impressive accuracy of 0.025% of reading, making it a reliable alternative to deadweight testers. This rugged instrument is waterproof to 3 feet, ensuring dependable performance in harsh conditions.

Key Features & Highlights

• Gauge and absolute pressure measurement up to 15,000 psi / 1000 bar / 100 MPa
• High accuracy of 0.025% of reading
• Differential pressure capability
• Additional measurement functions: switch, voltage, current, and temperature
• Large data storage capacity of 500,000 data points
• Fast sampling rate of 10 readings per second from 2 modules
• Replaceable CPF adapter to minimize wear
• Live graphical display without a PC
• PC connectivity for real-time viewing and tamper-proof digital records
• Temperature compensation from -20 to 50°C
• Includes calibration certificate with test data at 5 different temperatures from an A2LA accredited laboratory

Applications

This data logger is ideal for calibration and testing in chemical processing, pressure vessel inspection, and other industrial applications where high pressure and corrosion resistance are critical. Its portability and rugged design make it suitable for field use, while its accuracy and data logging capabilities support precise documentation and quality assurance.
