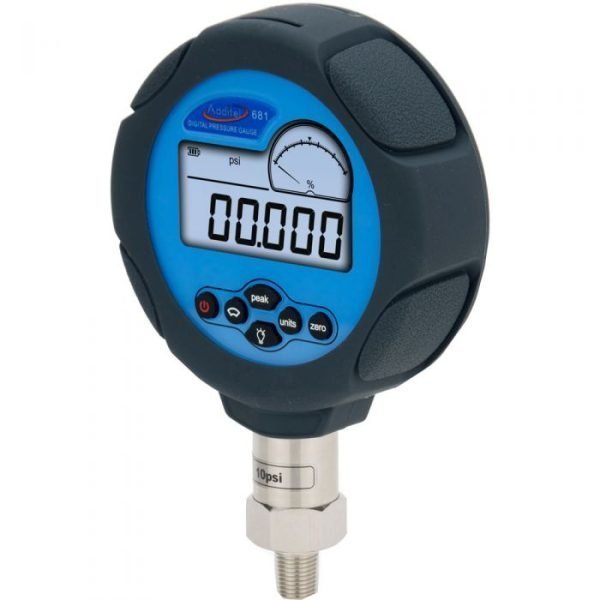

The Additel ADT681-02-GP10K-PSI-N2-DL is a precision digital pressure gauge designed for demanding industrial applications. With a pressure range of 0 to 10,000 psi and an accuracy of 0.02% full scale, this gauge delivers reliable and repeatable measurements. The nitrogen-filled stainless steel case ensures durability and protection against harsh environments, while the large backlit display with 5-digit resolution offers excellent readability.
This model includes a data logging function that records up to 21,843 records, each with date, time, pressure, and temperature. The logged data can be downloaded via the free Additel/Land software or analyzed in real-time with Additel/Log II. The gauge is fully temperature compensated from -10°C to 50°C, ensuring accuracy across a wide range of operating conditions.
Key Features & Highlights
- Pressure range: 0 to 10,000 psi (0 to 700 bar)
- Accuracy: 0.02% full scale
- Nitrogen-filled stainless steel case for enhanced durability
- Large, easy-to-read display with backlight and 5-digit resolution
- Data logging capability: up to 21,843 records with date, time, pressure, and temperature
- Fully temperature compensated from -10°C to 50°C
- Eleven selectable pressure units
- Fan-shaped graph scale for visual reference
- Display flash warning when pressure exceeds 120% of full scale
- NIST traceable calibration with data included
- Powered by 9V battery or optional AC adapter
Applications
The Additel ADT681-02-GP10K-PSI-N2-DL is suitable for a wide range of pressure measurement and calibration tasks, including hydraulic systems, pneumatic systems, process control, and laboratory testing. Its high accuracy and data logging capabilities make it ideal for long-term pressure monitoring, field calibration, and quality assurance.
