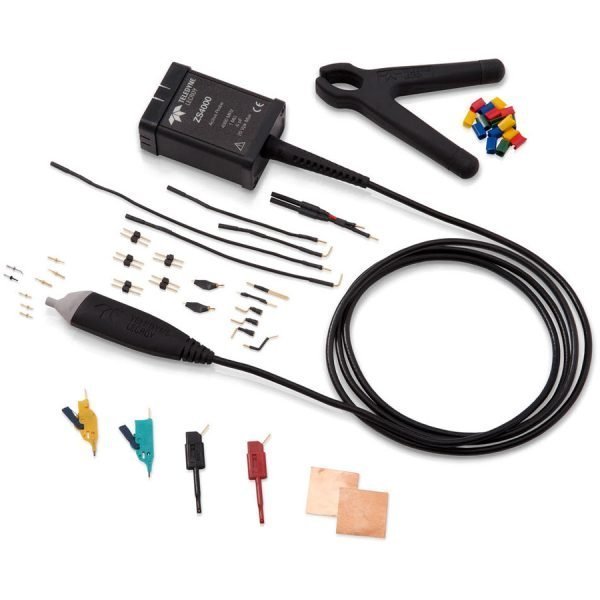

The Teledyne LeCroy ZS4000 Active Probe is a high-performance solution for engineers and technicians requiring precise measurement of high-speed signals. With a 4 GHz bandwidth, an ultra-low input capacitance of 0.6 pF, and a high input resistance of 1 MΩ, this probe minimizes circuit loading and ensures signal fidelity. Its ProBus interface provides plug-and-play compatibility with Teledyne LeCroy oscilloscopes, simplifying setup and enhancing measurement accuracy.
Key Features & Highlights
- 4 GHz Bandwidth: Captures fast transients and high-frequency components with exceptional accuracy.
- 0.6 pF Input Capacitance: Reduces loading on the device under test, preserving signal integrity.
- 1 MΩ Input Resistance: Ensures minimal DC loading for accurate voltage measurements.
- ProBus Interface: Direct connection to compatible LeCroy oscilloscopes for automatic scaling and power.
- 8/12 V Power Supply: Flexible power options for various oscilloscope models.
- Compact and Lightweight: Easy handling and portability in lab and field environments.
Applications
The ZS4000 is ideal for high-speed digital design validation, power electronics analysis, telecommunications testing, and aerospace/defense applications where signal fidelity is critical. Its combination of bandwidth, low capacitance, and high resistance makes it a versatile tool for R&D, production test, and troubleshooting.
