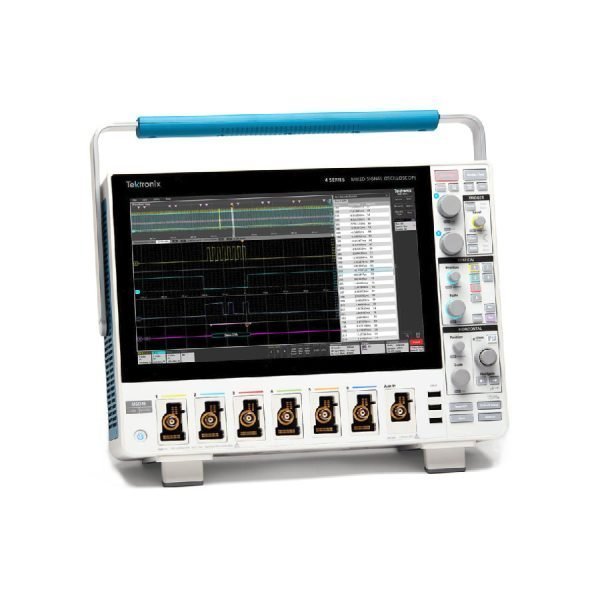

The Tektronix MSO46/4-BW-350 Mixed Signal Oscilloscope delivers exceptional performance for demanding signal analysis tasks. With 6 analog and 48 digital channels, 350 MHz bandwidth, and a 6.25 GS/s sample rate, this instrument provides the resolution and speed needed to capture and analyze complex signals with confidence.
Key Features & Highlights
- 6/48 Channels: Simultaneously acquire and correlate analog and digital signals for comprehensive mixed-signal debugging.
- 350 MHz Bandwidth: Capture high-frequency components with fidelity, ensuring accurate representation of fast transients.
- 6.25 GS/s Sample Rate: Achieve precise waveform reconstruction, even for high-speed signals.
- Advanced Triggering: Isolate specific events with flexible trigger options, including edge, pulse width, and serial pattern triggers.
- Protocol Analysis: Decode common serial buses (I2C, SPI, CAN, etc.) to simplify validation and debug.
- Wave Inspector® Navigation: Quickly search, zoom, and analyze waveforms to reduce time-to-insight.
- 10.1-inch Capacitive Touchscreen: Intuitive operation with pinch, swipe, and tap gestures for efficient workflow.
- Built-in Spectrum Analyzer: Perform frequency-domain analysis without additional equipment.
Applications
Ideal for embedded system design, power electronics analysis, automotive electronics, and research and development, the Tektronix MSO46/4-BW-350 empowers engineers to tackle a wide range of measurement challenges with precision and efficiency.
