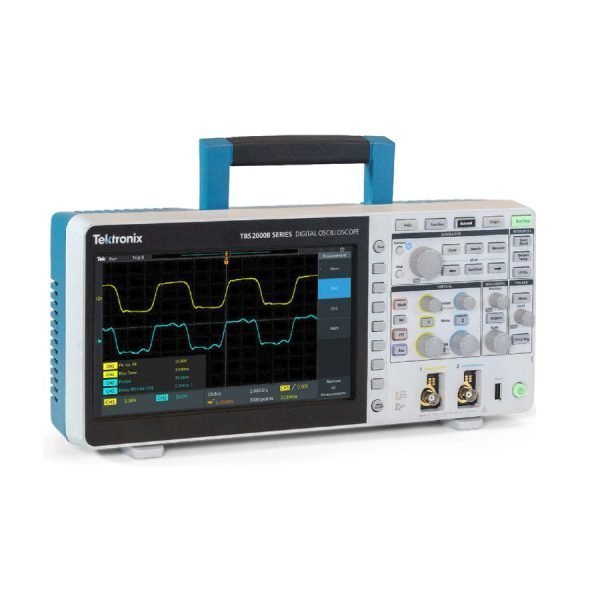

Tektronix TBS2102B 100 MHz 2-Channel Digital Oscilloscope, 1 GS/s

Overview

The Tektronix TBS2102B is a 2-channel digital oscilloscope from the TBS2000B Series, offering 100 MHz bandwidth and 1 GS/s real-time sample rate. With 5 Mpts memory depth and 8-bit vertical resolution, it delivers precise signal capture for a wide range of applications. This instrument combines advanced features with an intuitive interface, making it a reliable choice for engineers, technicians, and educators.

Key Features & Highlights

• 100 MHz Bandwidth & 1 GS/s Sample Rate: Capture fast signals with high fidelity.
• 2 Channels with 5 Mpts Memory Depth: Record long waveforms for detailed analysis.
• 8-bit Vertical Resolution: Ensure accurate amplitude measurements.
• Large High-Resolution Display: View signals clearly with an intuitive user interface.
• 32 Automated Measurements: Quickly obtain key parameters without manual calculations.
• Wave Inspector® Controls: Navigate and analyze waveforms efficiently.
• XY Mode: Analyze phase and frequency relationships.
• USB Connectivity: Transfer data and control the instrument remotely.

Applications

The TBS2102B is suitable for electronics design and troubleshooting, education and training, research and development, and manufacturing test. Its combination of performance and ease of use makes it a versatile tool for any lab or workbench.
