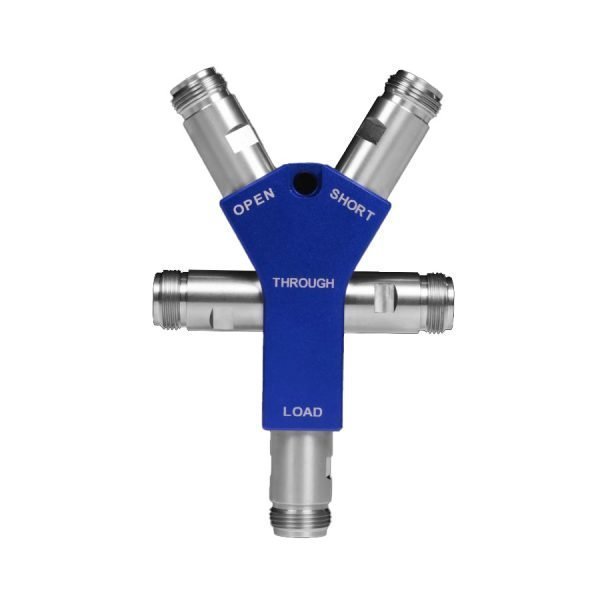

Siglent Y504FS Integrated Mechanical Calibration Kit
The Siglent Y504FS is a high-quality mechanical calibration kit designed to deliver precise and reliable calibration for vector network analyzers (VNAs) operating from DC to 9 GHz. Featuring an integrated OSLT (Open, Short, Load, Through) configuration and N-Type (f) connectors, this kit ensures accurate measurements across a wide range of RF and microwave testing applications.
Key Features & Highlights
- Frequency Range: DC to 9 GHz, covering essential bands for communication, aerospace, and industrial testing.
- Calibration Standards: Includes Open, Short, Load, and Through (OSLT) standards for comprehensive VNA calibration.
- Connector Type: N-Type (f) connectors, widely used for high-frequency and high-power applications.
- Integrated Design: Mechanical calibration with no external torque wrench required, simplifying the calibration process.
- Durable Construction: Precision-machined aluminum housing ensures long-term stability and repeatability.
- Portable: Compact and lightweight, ideal for field use and bench-top setups.
Applications
The Siglent Y504FS is essential for engineers, technicians, and researchers who require accurate VNA measurements in applications such as:
- Component testing (filters, amplifiers, antennas)
- Material characterization
- Production line testing
- Research and development laboratories
By ensuring precise calibration, the Y504FS enhances measurement confidence and reduces uncertainty, making it a valuable tool for any RF testing environment.
