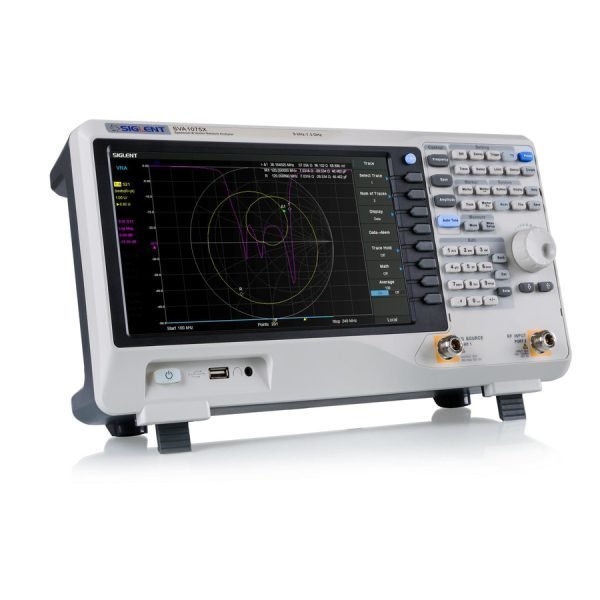

The Siglent SVA1032X from the SVA1000X series is a high-performance spectrum and vector network analyzer that delivers exceptional accuracy and versatility for RF and microwave engineering. Covering a frequency range of 9 kHz to 3.2 GHz, this instrument combines a spectrum analyzer and vector network analyzer in one compact unit, making it an essential tool for signal characterization, network analysis, and more.
Key Features & Highlights
- Frequency Range: 9 kHz to 3.2 GHz for both spectrum and vector network analysis.
- High Dynamic Range: >100 dB (spectrum) and >120 dB (vector network) for accurate measurements of weak signals and high-impedance devices.
- Excellent Sensitivity: <-160 dBm for detecting low-level signals.
- 10.1-inch Capacitive Touchscreen: Intuitive interface for efficient operation and data visualization.
- Multiple Measurement Modes: Spectrum analysis, vector network analysis, time domain analysis, and modulation analysis.
- Built-in Tracking Generator: Enables convenient scalar network analysis.
- Fast Sweep Speed: Up to 1000 sweeps per second for rapid testing.
- Connectivity: USB, LAN, and GPIB interfaces for remote control and data transfer.
- High Accuracy: Frequency accuracy ±0.5 ppm, amplitude accuracy ±0.5 dB, phase accuracy ±1.5°.
Applications
The SVA1032X is ideal for a wide range of applications, including RF component testing, antenna characterization, filter tuning, EMC pre-compliance testing, and educational laboratories. Its versatility and precision make it a valuable asset for design, manufacturing, and service environments.
What’s in the Box
- Siglent SVA1032X Spectrum/Vector Network Analyzer
- Power cord
- USB cable
- LAN cable
- GPIB cable
- User manual
