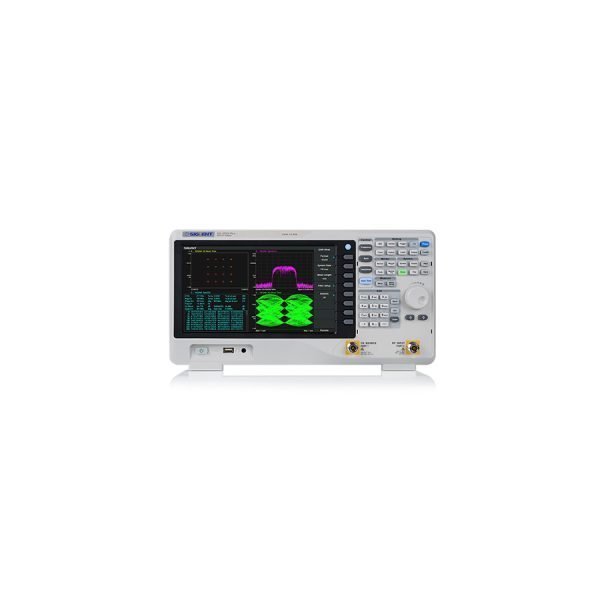

The Siglent SSA3075X Plus Spectrum Analyzer delivers high-performance RF measurement capabilities in a benchtop form factor. With a frequency range from 9 kHz to 7.5 GHz and a resolution bandwidth (RBW) from 1 Hz to 3 MHz, this instrument is engineered for precise spectral analysis across a wide array of applications. Its 10.1-inch capacitive touchscreen provides an intuitive user interface, while advanced features like a low DANL of -163 dBm (typical) and phase noise of -105 dBc/Hz (typical) ensure accurate and reliable measurements.
Key Features & Highlights
- Wide Frequency Range: 9 kHz to 7.5 GHz coverage for diverse RF and microwave testing.
- High Resolution Bandwidth: RBW from 1 Hz to 3 MHz enables detailed signal analysis.
- Large Touchscreen: 10.1-inch capacitive display for easy navigation and data visualization.
- Excellent Sensitivity: DANL of -163 dBm (typical) for detecting low-level signals.
- Low Phase Noise: -105 dBc/Hz (typical) ensures accurate measurement of close-in signals.
- Fast Sweep Speed: Up to 2000 sweeps per second for efficient testing.
- Versatile Measurement Functions: Includes power, frequency, modulation, and more.
- Built-in Tracking Generator: Facilitates scalar network analysis.
- Optional Accessories: Preamplifier and near-field probe available for enhanced capabilities.
Applications
The SSA3075X Plus is well-suited for telecommunications, aerospace, electronics manufacturing, and research laboratories. It is ideal for signal characterization, EMC pre-compliance testing, spectrum monitoring, and educational purposes.
