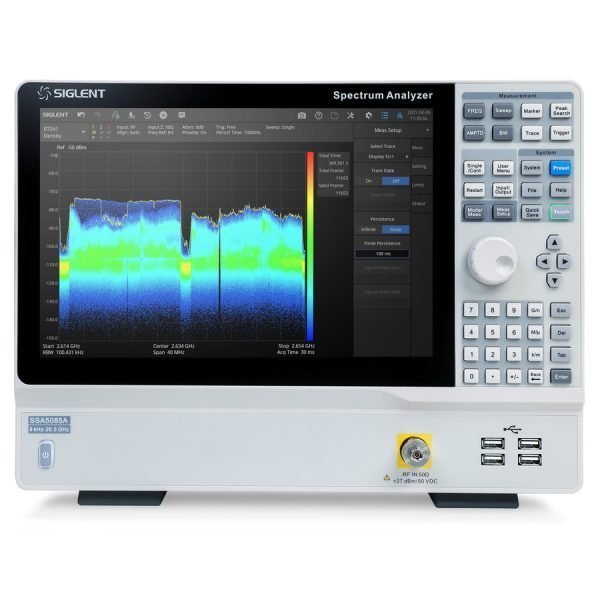

Siglent SSA5085A Spectrum Analyzer
The Siglent SSA5085A is a high-performance spectrum analyzer from the SSA5000A series, offering a wide frequency range of 9 kHz to 26.5 GHz. With its exceptional sensitivity and dynamic range, it is designed for demanding RF applications, providing accurate and reliable measurements for engineers and technicians.
Key Features & Highlights
- Wide Frequency Coverage: 9 kHz to 26.5 GHz for versatile RF testing.
- High Sensitivity: Typical -165 dBm for detecting low-level signals.
- Excellent Dynamic Range: 100 dB typical for measuring strong and weak signals simultaneously.
- Resolution Bandwidth: 1 Hz to 10 MHz for detailed signal analysis.
- Video Bandwidth: 1 Hz to 10 MHz for flexible measurement setups.
- Fast Sweep Speed: 100 ms/div to 10 s/div for efficient troubleshooting.
- Large Touchscreen: 12.1-inch LCD for intuitive operation and clear data display.
- Comprehensive Connectivity: USB, LAN, and GPIB interfaces for remote control and data transfer.
Applications
The SSA5085A is ideal for RF design, testing, and troubleshooting in industries such as telecommunications, aerospace, defense, and electronics manufacturing. It is also suitable for educational and research laboratories.
