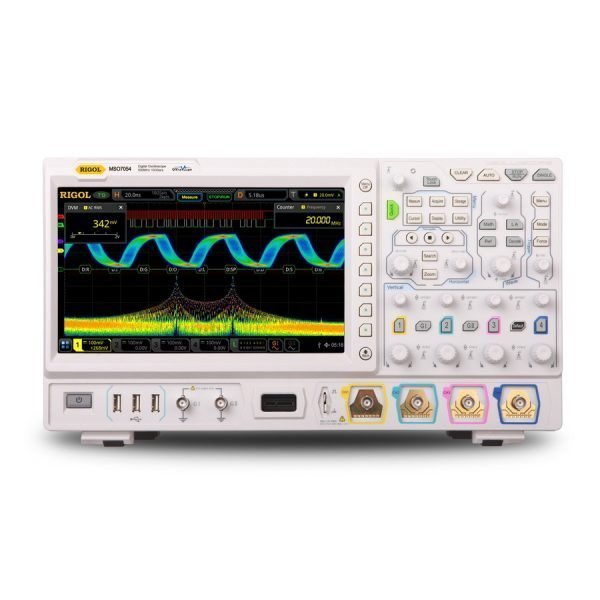

RIGOL MSO7054 Mixed Signal Oscilloscope
The RIGOL MSO7054 is a powerful mixed signal oscilloscope from the MSO7000 series, designed for engineers and technicians who demand precision and versatility. With 4 analog channels and 16 digital channels, this instrument provides a comprehensive view of both analog and digital signals, making it an essential tool for debugging complex embedded systems, analyzing power electronics, and performing automotive diagnostics. Its 500 MHz bandwidth and 10 GS/s sample rate ensure accurate capture of high-speed waveforms, while the 100 Mpts memory depth allows for extended recording and detailed analysis of transient events.
Key Features & Highlights
- 4 Analog + 16 Digital Channels: Simultaneously capture and analyze up to 20 signals for a complete system view.
- 500 MHz Bandwidth: Measure high-frequency signals with confidence, ensuring reliable analysis of fast waveforms.
- 10 GS/s Sample Rate: Capture fast transients with exceptional detail for precise timing measurements.
- 100 Mpts Memory Depth: Store long waveforms for in-depth analysis and post-processing.
- Advanced Triggering: Edge, pulse width, and logic triggering help isolate specific events for efficient debugging.
- Intuitive User Interface: Customizable display and quick-access controls streamline your workflow.
Applications
The RIGOL MSO7054 is ideal for a wide range of applications, including embedded system design and debugging, power electronics analysis, telecommunications, and automotive electronics testing. Its mixed signal capability makes it particularly valuable for verifying digital protocols alongside analog signals, ensuring comprehensive validation of complex designs.
