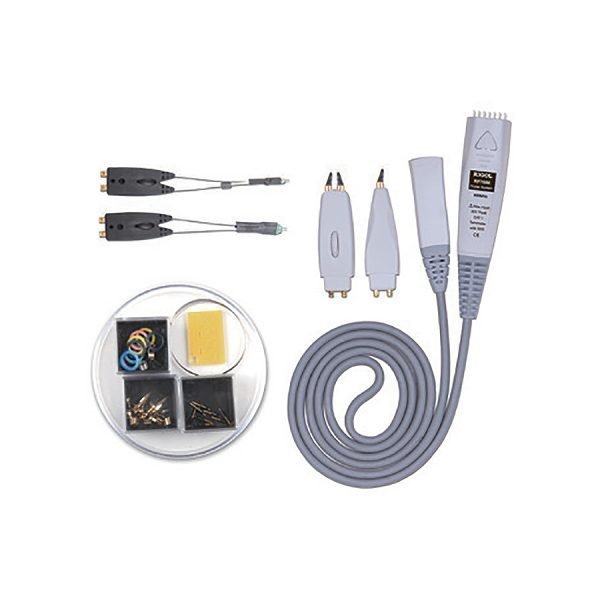

RIGOL RP7080 Active Differential Probe
The RIGOL RP7080 is a high-performance active differential probe engineered for accurate measurement of high-speed signals. With an 800 MHz bandwidth and a wide dynamic range, this probe is ideal for debugging and analyzing complex digital systems. Whether you’re working with differential or single-ended signals, the RP7080 delivers reliable, low-distortion measurements essential for modern electronics development.
Key Features & Highlights
- 800 MHz Bandwidth: Captures fast signal transitions with precision, suitable for high-speed digital applications.
- Versatile Input Modes: Supports both differential (±10 V) and single-ended (±5 V) measurements, offering flexibility for various test setups.
- High Input Impedance: 1 MΩ // 10 pF minimizes loading on the circuit under test, preserving signal integrity.
- Low Probe Tip Capacitance: 1.5 pF capacitance and 0.5 nH inductance reduce signal distortion, ensuring accurate waveform reproduction.
- Adjustable Gain and Offset: 10x gain and ±10 V offset range allow fine-tuning for optimal signal visualization.
- Robust Protection: Overvoltage protection up to ±100 V and ESD protection up to ±2 kV enhance durability in demanding environments.
- Compact and Lightweight: Easy to handle and integrate into your test setup, with included carrying case for portability.
Applications
The RIGOL RP7080 is well-suited for a variety of applications, including:
- Debugging and troubleshooting high-speed digital circuits
- Signal integrity analysis in PCB design and validation
- Power electronics testing where differential measurements are required
- Educational laboratories and research facilities
With its combination of high bandwidth, versatile inputs, and robust construction, the RIGOL RP7080 is an invaluable tool for engineers and technicians seeking precise, reliable measurements.
