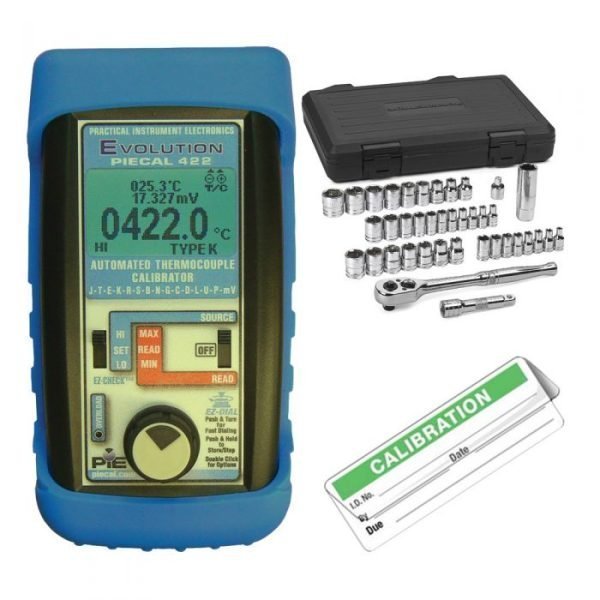

PIE 422-T-VIP Temperature Calibrator with mV Source, 14 T/C Types

PIE 422-T-VIP Temperature Calibrator

The PIE 422-T-VIP is a versatile temperature calibrator designed for industrial maintenance and calibration professionals. It sources and reads 14 thermocouple types (J, K, T, E, R, S, B, N, G, C, D, L, U, P) plus millivolts, with a range of -13.000 to 80.000 mV. Its high accuracy (0.2°C) and cold junction compensation (0.05°C) ensure reliable calibration in demanding environments.

Key Features & Highlights

• 14 T/C Types plus mV: Supports J, K, T, E, R, S, B, N, G, C, D, L (J DIN), U (T DIN), and P (Platinel).
• High Accuracy: 0.2°C accuracy and 0.05°C cold junction sensor accuracy.
• Fast Calibration: EZ-CHECK switch for instant selection of three outputs, and EZ-DIAL knob with automatic stepping for quick trip point finding.
• Easy T/C Selection: Double-click to change thermocouple type and °F/°C scale.
• Backlit Display: Read in dark plant areas with ease.
• Rugged Design: Includes rubber boot, low-profile switches, and brass screw terminals plus mini T/C socket.
• Simple Battery Change: Uses four inexpensive AA batteries, no tools required.
• Secondary Display: Shows compensated millivolt setting and cold junction temperature.

Applications

The PIE 422-T-VIP is ideal for heat treating surveys, accuracy tests, and field calibration. It meets or exceeds AMS 2750 requirements as both a Secondary Standard Instrument and a Field Test Instrument, making it suitable for aerospace, automotive, and industrial manufacturing quality assurance.
