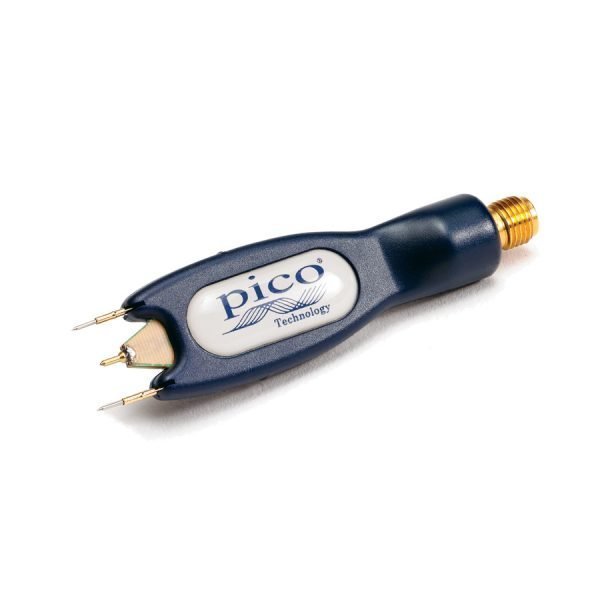

The PicoConnect 926 is a high-performance DC coupled passive probe engineered for PicoConnect 900 Series oscilloscopes. With a bandwidth of 9 GHz and an ultra-low input capacitance of 0.3 pF, this 5X attenuation probe ensures minimal circuit loading and exceptional signal fidelity, making it ideal for high-speed digital design, RF, and telecommunications applications.
Key Features & Highlights
- 9 GHz Bandwidth: Captures fast-rising signals with minimal distortion, ensuring accurate representation of high-frequency waveforms.
- 5X Attenuation: Reduces signal amplitude to safely interface with oscilloscope inputs while preserving signal integrity.
- 0.3 pF Input Capacitance: Minimizes capacitive loading on the device under test, preserving circuit behavior and measurement accuracy.
- 5 V Maximum Input Voltage: Suitable for a wide range of low-voltage applications without risk of damage.
- DC Coupled: Allows measurement of DC and low-frequency components, providing a complete signal picture.
- PicoConnect 900 Series Compatibility: Seamless integration with PicoConnect 900 Series oscilloscopes for optimal performance.
Applications
The PicoConnect 926 is ideal for engineers and technicians working on high-speed digital circuits, serial data links, RF design, and signal integrity analysis. Its low capacitance and high bandwidth make it a valuable tool for debugging, troubleshooting, and validating designs in R&D labs, production test, and field service environments.
