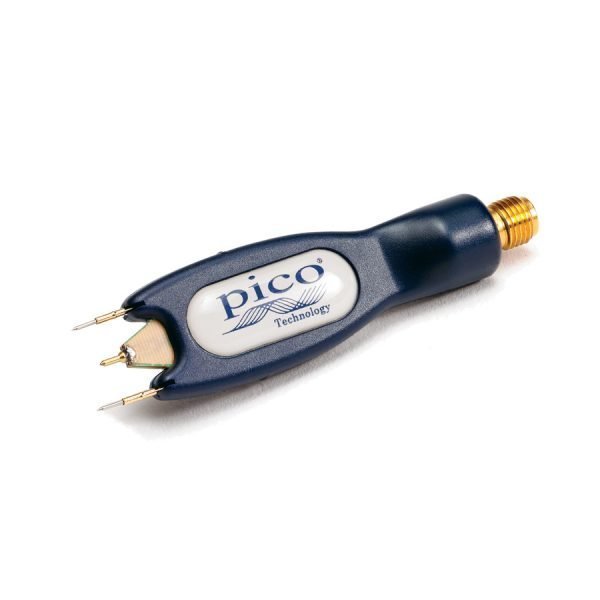

PicoConnect 915 5 GHz 5X 0.3 pF AC Coupled Passive Probe

PicoConnect 915 AC Coupled Passive Probe

The PicoConnect 915 is a high-performance AC coupled passive probe engineered for demanding RF and high-frequency measurement applications. With a bandwidth of 5 GHz, an input impedance of 10 MΩ, and an ultra-low capacitance of 0.3 pF, this probe minimizes circuit loading and preserves signal integrity, making it an essential tool for engineers and technicians working in RF design, telecommunications, and power electronics.

Key Features & Highlights

• 5 GHz Bandwidth: Capture high-frequency signals with exceptional fidelity.
• 5X Attenuation: Extends measurement range while maintaining signal accuracy.
• 0.3 pF Input Capacitance: Ultra-low loading for minimal impact on the circuit under test.
• 10 MΩ Input Impedance: Ensures high accuracy across a wide range of test points.
• AC Coupled Design: Blocks DC components, ideal for measuring AC signals and RF waveforms.
• 8 V Maximum Input Voltage: Safe for a variety of low-voltage RF applications.
• Durable Construction: Built for reliable, long-lasting performance in demanding environments.

Applications

The PicoConnect 915 is ideal for use in RF design and validation, telecommunications testing, signal integrity analysis, and power electronics measurements. Its high bandwidth and low capacitance make it particularly suited for probing high-speed digital and RF circuits where minimal loading is critical.

Part of the PicoConnect 900 RF Series, the PicoConnect 915 delivers the performance and reliability expected from Pico Technology, ensuring accurate measurements in your most challenging applications.
