PicoConnect 911 4 GHz 20X Passive Probe for RF Applications

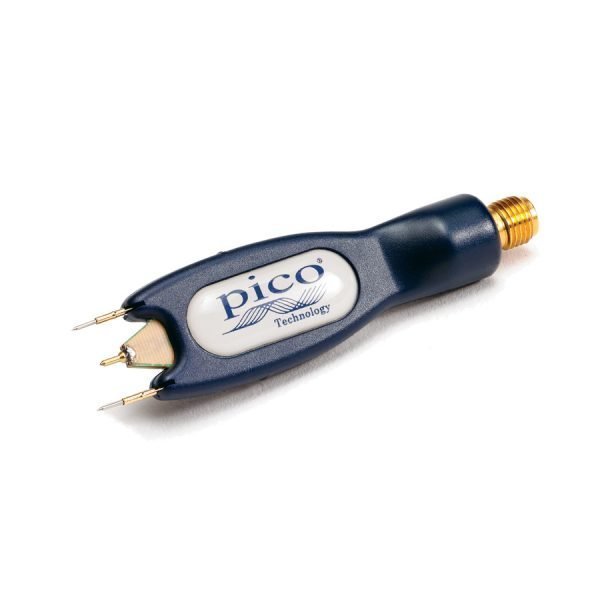

PicoConnect 911 AC Coupled Passive Probe

The PicoConnect 911 is a precision-engineered AC coupled passive probe designed for demanding RF and high-speed digital applications. With a 4 GHz bandwidth, 20X attenuation, and an ultra-low input capacitance of 0.3 pF, this probe delivers exceptional signal fidelity while minimizing circuit loading. Part of the PicoConnect 900 RF Series, it is the ideal choice for engineers and technicians working with high-frequency signals.

Key Features & Highlights

• 4 GHz Bandwidth: Captures fast-rising signals with high accuracy, making it suitable for RF design, digital circuit analysis, and power electronics.
• 20X Attenuation: Reduces signal amplitude to protect sensitive oscilloscope inputs while maintaining signal integrity.
• 0.3 pF Input Capacitance: Ultra-low capacitive loading ensures minimal disturbance to the circuit under test.
• AC Coupled Design: Blocks DC components, allowing measurement of AC signals with high resolution.
• High Input Impedance: 20 MΩ impedance minimizes signal loading for accurate measurements.
• Wide Compensation Range: Compatible with oscilloscopes having 10 pF to 100 pF input capacitance.
• Durable Construction: Built for long-lasting performance in demanding environments.

Applications

The PicoConnect 911 is perfect for RF design, high-speed digital circuit debugging, and power electronics testing. Its high bandwidth and low capacitance make it essential for measuring high-frequency signals in communication systems, semiconductor characterization, and EMI troubleshooting.
