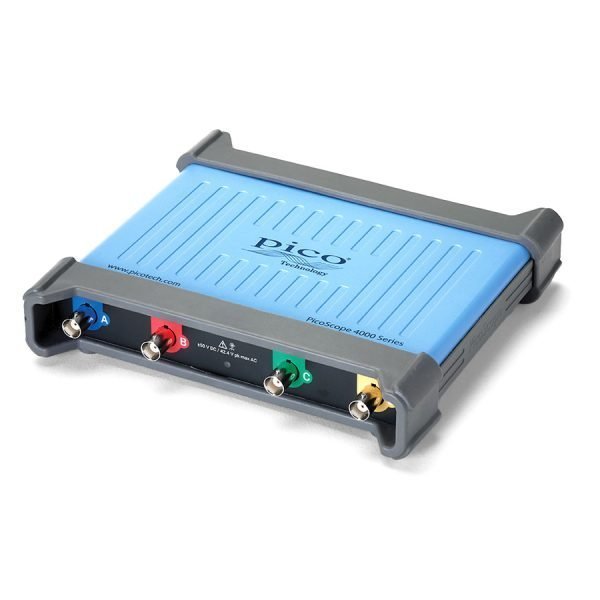

Pico Technology 4424A PicoScope 4000A Series PC USB Oscilloscope
The Pico Technology 4424A is a high-performance 4-channel PC USB oscilloscope from the PicoScope 4000A Series, offering 20 MHz bandwidth and 12-bit resolution. With a 1 GS/s sampling rate and deep 16 MS memory buffer, this oscilloscope provides accurate and detailed signal capture for a wide range of engineering and industrial applications. The included PicoScope 4000A software and four TA375 probes make it a complete, ready-to-use solution for professionals seeking reliable measurement and analysis.
Key Features & Highlights
- 4 Analog Channels: Simultaneously measure and compare multiple signals for comprehensive analysis.
- 20 MHz Bandwidth: Ideal for a variety of general-purpose and low-frequency applications.
- 12-bit Resolution: Enhanced vertical resolution for finer detail in signal observation.
- 1 GS/s Sampling Rate: Captures fast transients and high-speed events with precision.
- Deep Memory Buffer (16 MS): Long acquisition times without sacrificing sampling rate.
- Advanced Triggering: Edge, pulse width, and logic triggering for precise signal capture.
- Built-in Function Generator: Generate test signals without additional equipment.
- USB 2.0 Interface: Plug-and-play connectivity with your PC or laptop.
- Compact and Portable: Lightweight design for easy transport and field use.
- PicoScope 4000A Software: Intuitive interface with advanced analysis tools, including spectrum analysis and automatic measurements.
Applications
The PicoScope 4424A is well-suited for electronics design, testing, and troubleshooting in R&D labs, educational institutions, and field service. Its 4-channel capability and deep memory make it ideal for analyzing complex signals in embedded systems, automotive electronics, power supplies, and control systems. The included TA375 probes ensure accurate signal fidelity, while the software’s advanced features support thorough data analysis and documentation.
