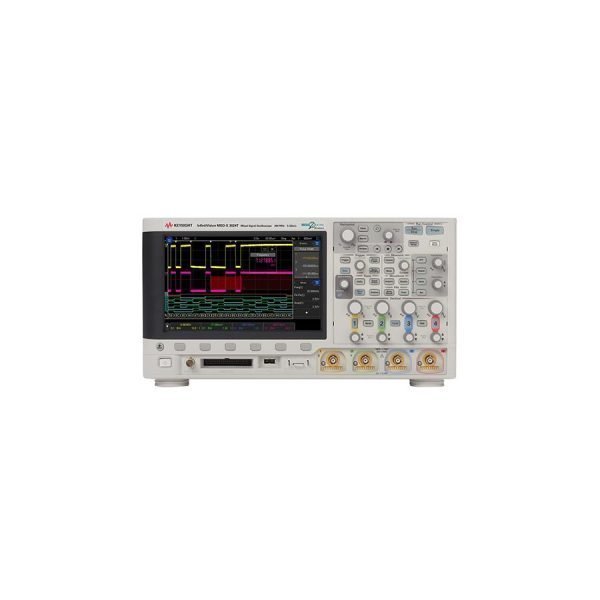

Keysight DSOX3104T 1 GHz 4-Channel Digital Oscilloscope, 5 GS/s

Keysight DSOX3104T Digital Oscilloscope: Precision and Performance for Advanced Debugging

The Keysight DSOX3104T is a high-performance 4-channel digital oscilloscope from the 3000T X-Series, engineered to meet the rigorous demands of modern electronics design and troubleshooting. With 1 GHz bandwidth, 5 GS/s sample rate, and 4 Mpts memory depth, this instrument delivers accurate, detailed signal capture for a wide range of applications.

Key Features & Highlights

• 1 GHz Bandwidth: Capture high-frequency signals with confidence, ensuring reliable analysis of fast digital and analog circuits.
• 4 Analog Channels: Simultaneously view and compare multiple signals, ideal for mixed-signal debugging and system-level validation.
• 5 GS/s Sample Rate: Achieve high-resolution waveform capture, revealing fine details and transient events.
• 4 Mpts Memory Depth: Record long time windows without sacrificing sample rate, perfect for analyzing complex serial protocols and rare glitches.
• 8-bit Vertical Resolution: Provides clear signal representation for accurate amplitude measurements.
• 3000T X-Series Technology: Benefit from advanced triggering, including edge, pulse width, and video triggering, to isolate specific events.
• Built-in Function Generator: Generate standard waveforms for stimulus-response testing without additional equipment.
• Intuitive Touch-Screen Interface: Navigate menus and adjust settings quickly, enhancing workflow efficiency.
• Compact and Portable Design: Easily move the oscilloscope between labs or field sites.

Applications and Use Cases

The Keysight DSOX3104T is well-suited for engineers and technicians in electronics design, manufacturing test, and research. Typical applications include:

• Debugging and validating embedded systems, power electronics, and communication interfaces.
• Analyzing signal integrity in high-speed digital designs.
• Characterizing analog circuits and sensors.
• Education and training in university laboratories.

With its combination of bandwidth, sample rate, memory depth, and user-friendly features, the DSOX3104T is a versatile tool that enhances productivity and confidence in measurement tasks.
