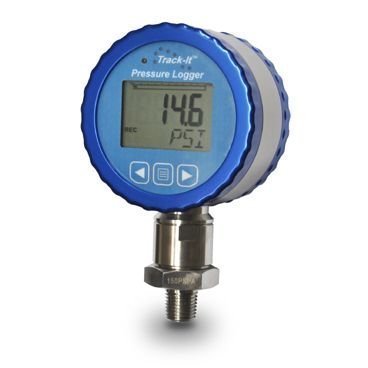

Monarch Instrument 5396-0338 Track-It Pressure/Temperature Data Logger with Display

Monarch Instrument 5396-0338 Track-It Pressure/Temperature Data Logger with Display

The Monarch Instrument 5396-0338 is a versatile multifunction data logger designed for accurate pressure or vacuum and temperature recording. This standalone, battery-powered logger features a multi-line LCD for real-time data, alarms, and min/max readings. With its rugged submersible anodized aluminum and stainless steel housing, it is built for demanding industrial environments.

Key Features & Highlights

• Records pressure or vacuum and temperature, or either parameter alone to maximize data storage
• Display shows live readings, min/max values, and alarm set-points
• User-definable engineering units for flexibility
• USB interface with included cable for easy configuration and data download
• Free interactive Track-It™ Software for setup and data analysis
• Rugged IP67 package, submersible and dust-tight
• Replaceable internal lithium battery with up to 3-year life (battery included)
• Temperature range: –4 to 185°F (-20 to 85°C)
• Pressure ranges available: 35, 150, 350, 550, 2000, 5800 PSI; vacuum ranges: 760 to 380 and 760 to 0 torr
• 150% over-range protection
• ¼ NPT male connection for easy installation
• High accuracy and repeatability
• Accurate internal clock (1 minute/year)
• N.I.S.T. calibration available
• Rotatable head and display (359 degrees) for optimal viewing

Applications

This data logger is ideal for industrial process monitoring, food manufacturing, water supply line and hydrant pressure monitoring, household water pressure, building supply, municipalities, HVAC, oil and gas, petrochemical, compressors, pumps, hydrostatic testing, and water/wastewater applications.
