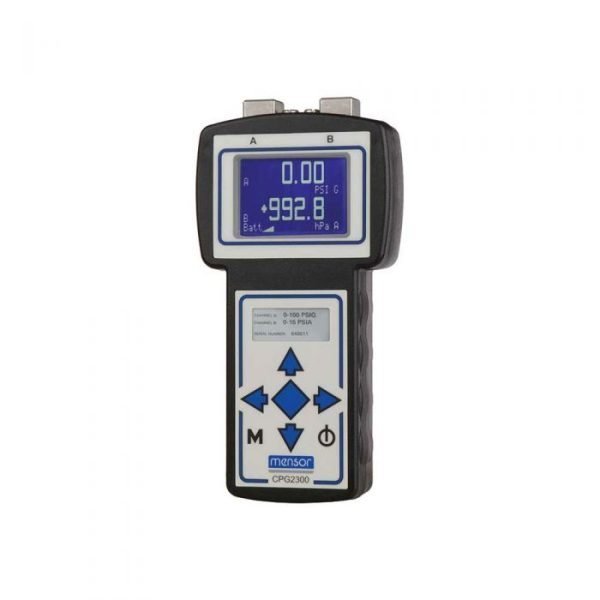

The Mensor CPG2300 is a precision digital pressure gauge designed for demanding industrial applications where accuracy and reliability are paramount. With an uncertainty of 0.015% FS, this portable calibrator delivers exceptional performance for field calibration of pressure transmitters, transducers, and other pressure-sensitive equipment. Its robust construction and temperature compensation from 0 to 50°C ensure consistent accuracy in a wide range of environments.
Key Features & Highlights
- High Accuracy: 0.015% FS uncertainty for reliable measurements.
- Dual Sensor Capability: Supports one or two independent pressure sensors, displayed simultaneously for versatile testing.
- Wide Pressure Ranges: Channel A up to 6000 psi; Channel B from 3 to 1000 psig or 7.5 to 1000 psia.
- Multiple Pressure Units: 17 selectable units plus one user-defined unit for flexibility.
- Intuitive Interface: Monochrome 128 x 64 LCD with white LED backlight and tactile membrane keypad.
- Additional Functions: Min/max peak pressure, rate per second/hour/3-hour, null function, and barometric pressure monitoring.
- Loop Power: Ability to power a control loop for field calibration of transmitters.
- Communication: RS-232 interface for data transfer.
Applications
The CPG2300 is ideal for rugged field calibration of pressure transmitters in gas transmission, testing and calibration of transducers in clean rooms, nuclear power plants, and other industrial settings. It is also suitable for troubleshooting process pressure transmitters and monitoring barometric pressure.
