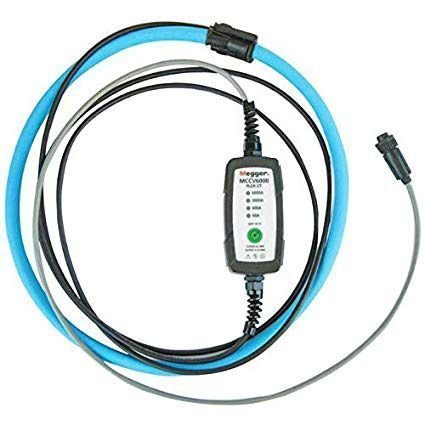

The Megger MCCV6000-37 is a versatile and rugged flexible current clamp engineered for use with the MPQ and PA9 series power quality analyzers. This 4-range clamp provides accurate current measurement across 60A, 600A, 3000A, and 6000A ranges, making it suitable for a wide variety of industrial and utility applications. Its rain-tight design ensures reliable operation in harsh outdoor conditions, while the 37cm inner diameter allows easy clamping around large conductors and busbars.
Key Features & Highlights
- 4 Current Ranges: 60A, 600A, 3000A, and 6000A for flexible measurement across different load levels.
- Rain-Tight Construction: IP-rated housing protects against moisture and dust, ideal for field use.
- Self-Identifying on MPQ: Automatically recognized by MPQ series instruments for seamless setup.
- Powered by Instrument: No external power source required; operates directly from the connected unit.
- Large 37cm Inner Diameter: Accommodates thick cables and multiple conductors with ease.
- 1.82m Cable Length: Provides flexibility in positioning the clamp away from the measurement unit.
Applications
The Megger MCCV6000-37 is ideal for power quality audits, load monitoring, and troubleshooting in industrial plants, utility substations, and commercial facilities. It is particularly useful for measuring high currents in large conductors, such as those found in switchgear, transformers, and busway systems.
