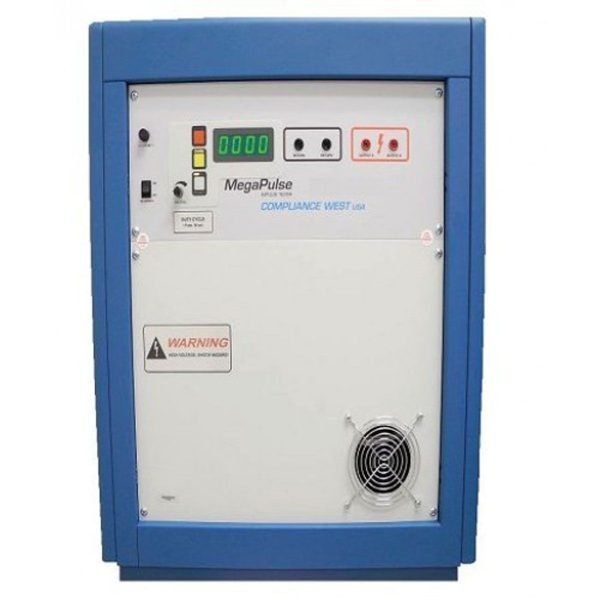

MegaPulse MP-8X20-12-2 Overview
The MegaPulse MP-8X20-12-2 Combination Wave Generator is a high-voltage combination tester for impulse testing and transient overvoltage limiting devices. It produces a defined combination waveform with selectable polarity on the ±2 ohm model.
Applications and Selection
Select this generator for tests described in EN 60060 and impulse tests referenced in EN 61010 Paragraph 14.9, Tables 17 and 18. The 2 ohm and 12 ohm options support the stated test configurations; the unit is not for use with a CDN.
Technical Information
- Output: 500 V to 12 kV peak
- Combination waveform at 2 ohms; 12 ohm tap provided
- Rated output current: 6 kA
- 30-second pulse repeat rate and charge time under 30 seconds
- Front-panel polarity reversal; PLC or LabView control with Option RI
- NIST calibration supplied for one year; A2LA/17025 calibration available; 1-year warranty
Request a Quotation
Contact Indomultimeter for a quotation on the MegaPulse MP-8X20-12-2 and confirm the required control and calibration options.
