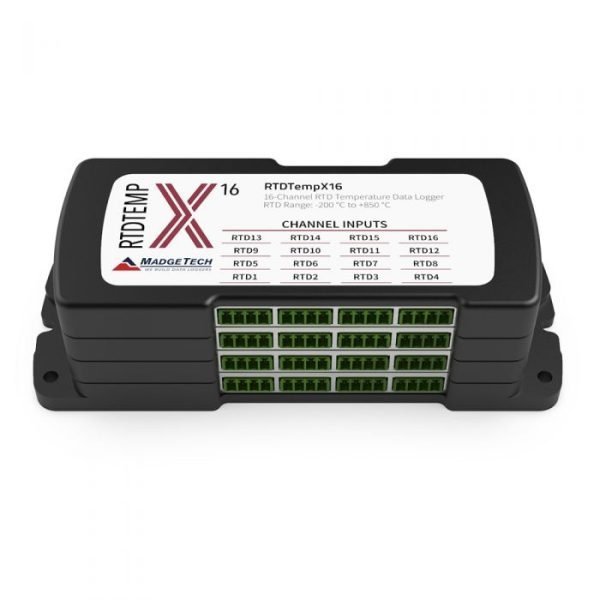

MadgeTech RTDTEMPX16 16-Channel RTD Temperature Data Logger

The MadgeTech RTDTEMPX16 is a high-performance, 16-channel RTD-based temperature data logger designed for demanding industrial and laboratory applications. With the ability to measure temperatures from -200 °C to 850 °C and a calibration accuracy of ±0.04 °C, this logger delivers precise and reliable data for critical processes. It accepts 2, 3, and 4-wire RTDs, providing flexibility for various sensor configurations.

Key Features & Highlights

• 16-Channel Capacity: Monitor multiple points simultaneously with 16 input channels, each independently configurable.
• Wide Temperature Range: Measures from -200 °C to 850 °C (-328 °F to 1562 °F), suitable for extreme environments.
• High Accuracy: Calibration accuracy of ±0.04 °C (±0.072 °F), probe dependent, ensures precise measurements.
• Versatile RTD Compatibility: Accepts 2, 3, and 4-wire RTDs for flexible sensor integration.
• Large Memory: Stores up to 2,794,236 readings, with the ability to enable or disable channels to maximize capacity.
• Easy Connectivity: Standard USB-A to Micro USB cable for data transfer; no special interface required.
• Compatible Software: Works with MadgeTech 4 Software for simple setup, data download, and analysis.
• Calibration Certificate: Includes a standard calibration certificate for quality assurance.

Applications

The RTDTEMPX16 is ideal for a wide range of temperature monitoring applications, including environmental chambers, industrial process control, HVAC, food processing, and laboratory research. Its rugged design and high accuracy make it suitable for both stationary and portable use in demanding conditions.
